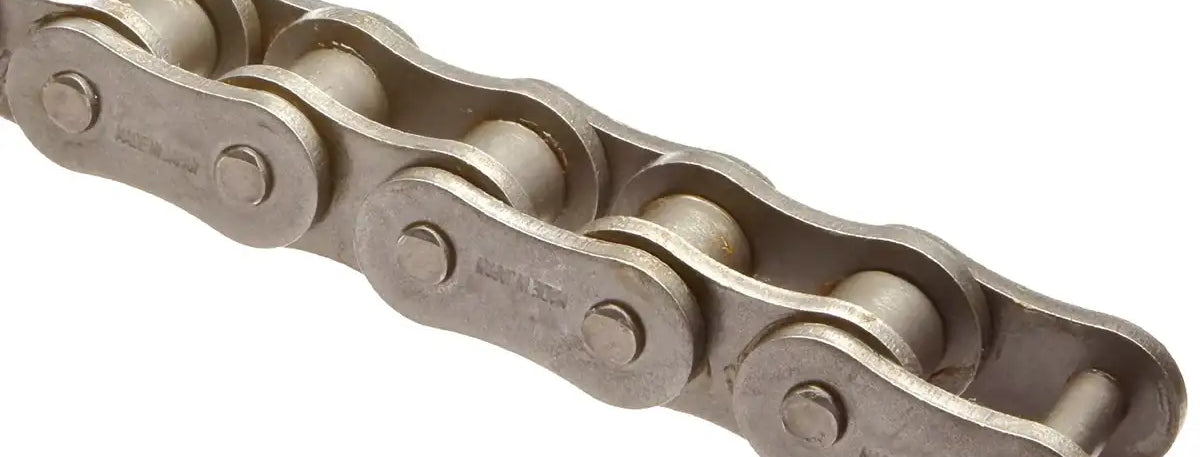

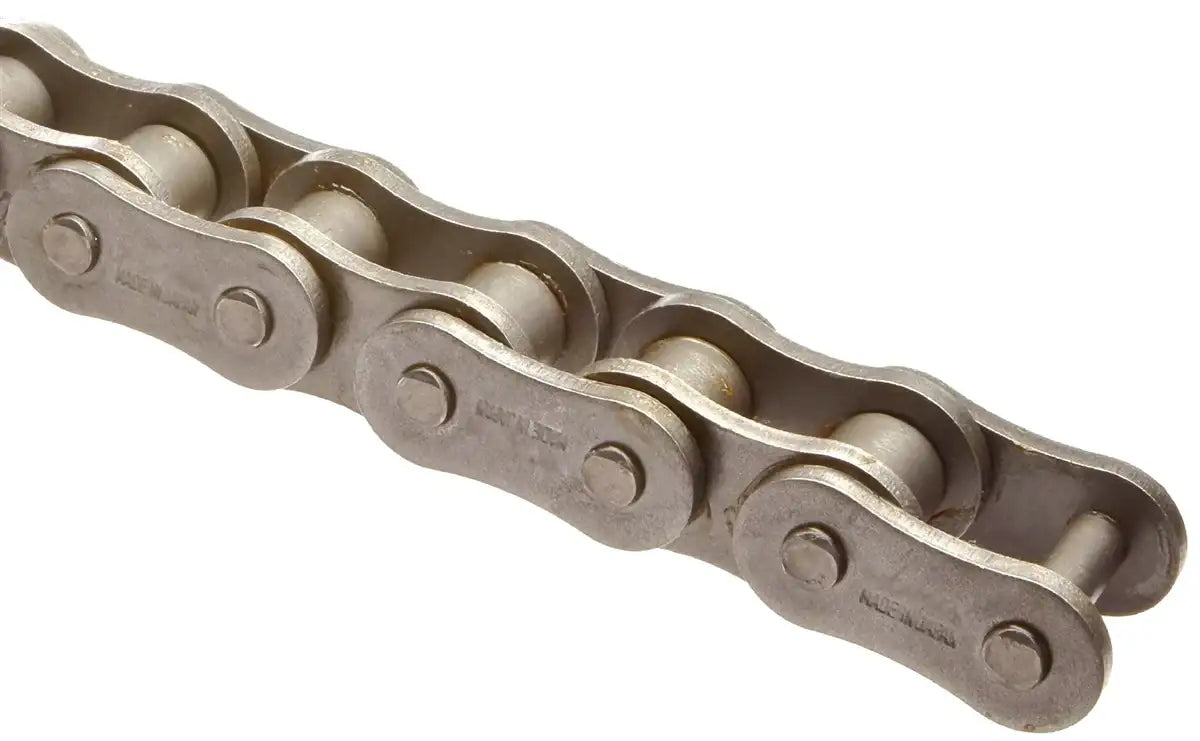

Premium Metric 10B Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$94.99
SKU: P-10B-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium Metric 10B Roller Chain - 10ft Box Features
Premium Metric 10B Roller Chain - 10ft Box Specifications
Premier Series 10B roller chain provides the best in class performance, working life, and strength. This 10B roller chain features fully heat-treated and shot peened components that are manufactured using a high quality carbon steel, along with solid bushings and solid rollers and high precision construction. Heat-treated and shot peened high quality carbon steel precision components make the chain much stronger and increases the overall shock load and durability. Adding solid rollers and solid bushings to the roller chain dramatically increases the performance and longevity of the chain due to its ability to operate with less friction and absolute minimal stretch. Additionally, we offer a full line of 10B sprockets and attachments.
Dimensions:
Dimensions:
- Part Number: 10B
- Tensile Strength: 5,720 LBS
- Pitch (P): 0.625"
- Transverse Pitch (K): 0.653"
- Roller Link Width (W): 0.380"
- Roller Diameter (R): 0.400"
- Pin Diameter (D): 0.200"
- Overall Width (F): 0.803"
- Plate Thickness (T1): 0059"
- Plate Thickness (T2): 0.059"
- Plate Height (H): 0.579"
- Weight: 0.577 LBS/ FT
- Part Number: 10B
- Tensile Strength: 5,720 LBS
- Pitch (P): 0.625"
- Transverse Pitch (K): 0.653"
- Roller Link Width (W): 0.380"
- Roller Diameter (R): 0.400"
- Pin Diameter (D): 0.200"
- Overall Width (F): 0.803"
- Plate Thickness (T1): 0059"
- Plate Thickness (T2): 0.059"
- Plate Height (H): 0.579"
- Weight: 0.577 LBS/ FT
