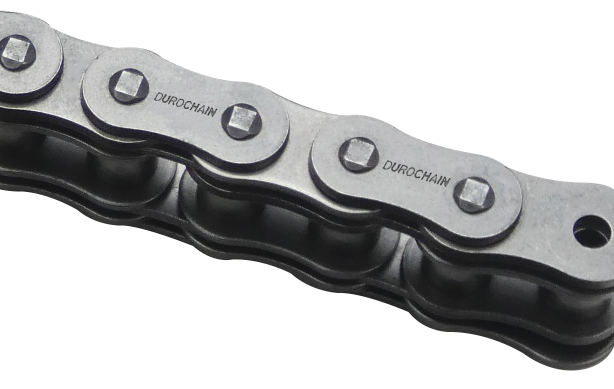

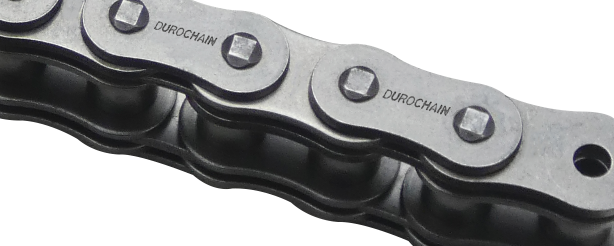

DUROCHAIN Premium 100DC Double-Capacity Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Experience the DUROCHAIN Difference.
DUROCHAIN 100DC Double Capacity Roller Chain is designed for applications requiring increased load capacity while maintaining compatibility with standard #100 single-strand roller chain sprockets. With a 1.250" pitch and double capacity construction, 100DC provides a heavy-duty solution without requiring a wider multi-strand sprocket arrangement.
Built for rock-solid reliability and long-lasting performance, DUROCHAIN 100DC Double Capacity Roller Chain combines precision-manufactured components with additional side plates designed to increase overall chain capacity and working load. The result is a compact power transmission solution that delivers increased strength while maintaining the pitch and sprocket compatibility of standard #100 single-strand roller chain.
DUROCHAIN 100DC Double Capacity Roller Chain has a rated 51,499 LBS load capacity and is an excellent option when your application requires more capacity from a #100 pitch chain without changing to a multi-strand sprocket setup.
DUROCHAIN Premium Roller Chain Features
Through-Hardened Pins
DUROCHAIN pins are through-hardened for increased strength, improved wear resistance, and dependable performance throughout the service life of the chain.
Precision Solid Round Parts
Solid bushings and rollers provide consistent bearing surfaces to help reduce internal wear, improve energy transfer, and support longer-lasting chain performance.
Superior Plate Hole Preparation
Precision-prepared plate holes help promote accurate component fitment, reduce stress points, and improve overall fatigue resistance in demanding applications.
Max Contour Side Plates
Max contour side plates are designed to add strength where it matters while maintaining ANSI dimensional requirements for proper interchangeability.
Quad-Staked Rivets
High-hold quad-staked rivets help improve chain integrity under shock loads, side thrust, and demanding operating conditions.
Factory Preload
Factory preloading helps seat chain components before installation, reducing initial elongation and helping the chain settle in faster once installed.
DUROCHAIN 100DC Double Capacity Roller Chain Specifications
- Part #: 100DC
- Pitch (P): 1.250"
- Roller Width (R): 0.744"
- Roller Diameter (D): 0.750"
- Overall Width (W): 2.242"
- Connecting Link Overall Width (X): 2.337"
- Plate Height (H): 1.181"
- Plate Height (h): 1.020"
- Plate Thickness (T): 0.157"
- Pin Diameter (L): 0.375"
- Load Capacity: 51,499 LBS
- Weight Per Foot: 2.72 LBS
