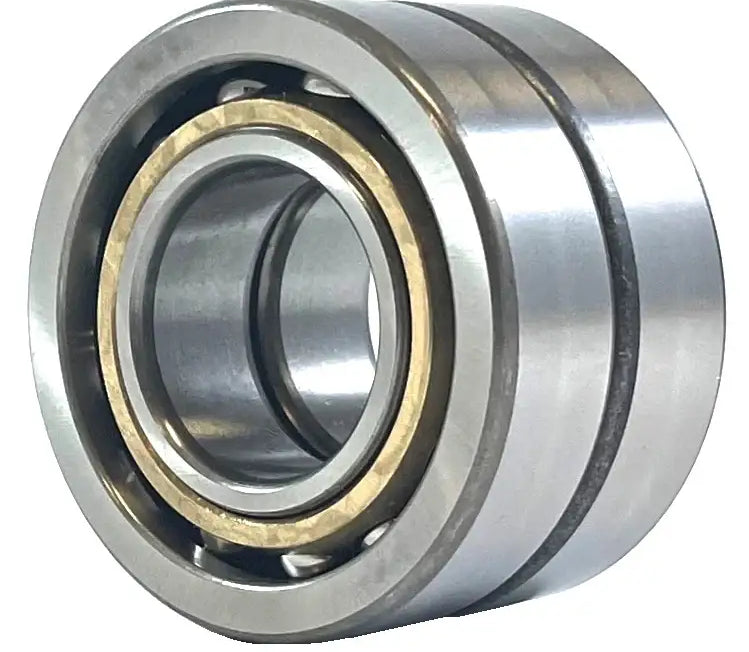

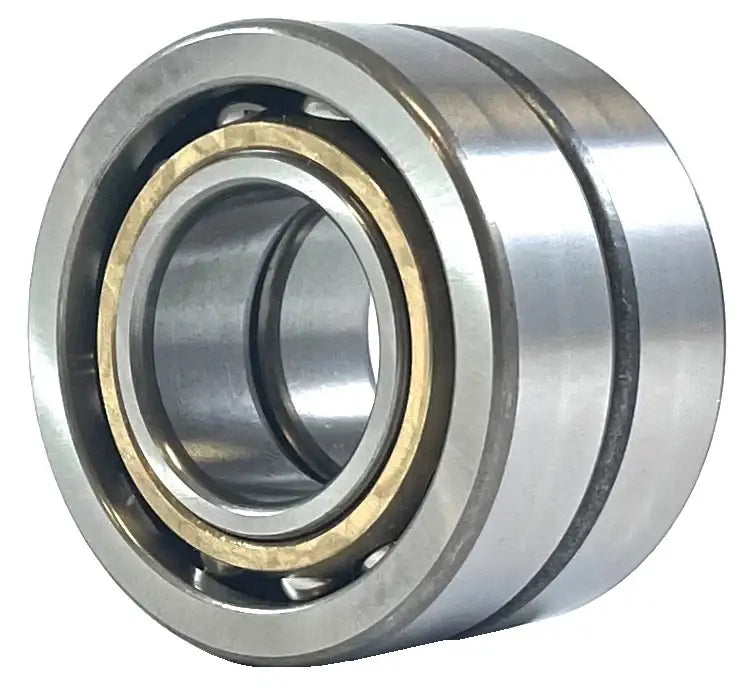

7226BUA Angular Contact Bearing Pair | 7226BUA - 130x230x80

This 7226-BUA Duplex bearing is a high-precision 45-degree 130x230x80 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer race. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7226-BUA Duplex bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 7 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7226-BUA Duplex bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!

7226-BUA Duplex Bearing Dimensions

• Bearing Size: 7226-BUA
• Dimension (d): 130mm
• Dimension (D): 230mm
• Dimension (B): 80mm
• Dynamic Load Rating: 64750 LBS
• Static Load Rating: 80940 LBS
• Limiting Speed (Grease): 1900 RPM
• Limiting Speed (OIL): 2500 RPM
