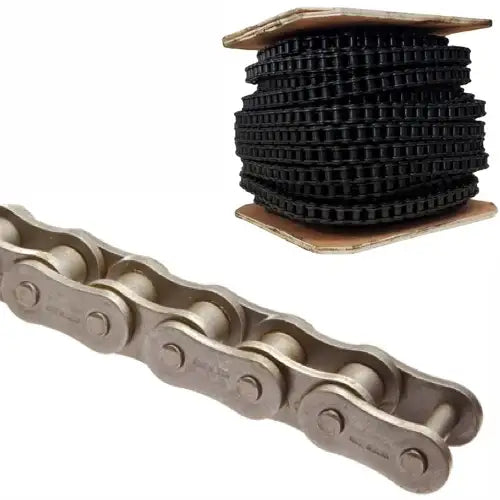

Premier Series #40 Roller Chain - 100ft Reel
100ft reels of #40 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. Premier Series #40 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #40 chain sprockets. All Premier Series series roller chains are manufactured using the highest quality heat-treated, shot peened, and hardened high-precision components and are supplied with a premium lubricant already applied from the factory. Additionally, Premier series roller chains feature a solid bushing solid roller (SBR) design which, produces a drastic performance and working life increase.
Premier Series Plus #40 Roller Chain Dimensions
- Pitch (P): 0.500"
- Roller Width (W): 0.312"
- Roller Diameter (D): 0.312"
- Overall Width (A): 0.650"
- Plate Height (H): 0.472"
- Plate Thickness (T): 0.059"
- Pin Diameter (E): 0.156"
- Tensile Strength: 4,290 LBS
- Working Load: 836 LBS
- Weight Per Foot: 0.42 LBS
