Double Angle CC V-Belts

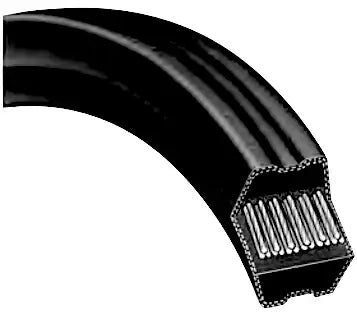

Our double-angle CC V-belts use high-strength polyester chords (tensile-member) with natural rubber (SBR). They are encased in a high-quality cotton-polyester blended cover for maximum strength and minimal stretch. They are manufactured under ARPM standard IP-21, directly interchange with other brands, and are used on standard C-Section pulleys/ sheaves. Because of their unique hexagonal design, these belts can transmit power from both sides of the belt.CC-Series Belt Part Number Designation
Note: These belts conform to ARPM standard IP21, and our line of V-belt pulleys conform to IP20. Additionally, standard operating temperatures range from -1° through +158° Fahrenheit.
If you do not see the specific belt you need, looking for large quantities, or need any assistance, please contact us!
|
Size
|
Outside Length
|
Size
|
Outside Length
|
Size
|
Outside Length
|
Size
|
Outside Length
|
Size
|
Outside Length
|
|---|---|---|---|---|---|---|---|---|---|
| CC75 | 79.2" | CC112 | 116.2" | CC144 | 148.2" | CC173 | 177.2" | CC270 | 272.2" |
| CC81 | 85.2" | CC119 | 123.2" | CC148 | 152.2" | CC180 | 184.2" | CC280 | 282.2" |
| CC85 | 89.2" | CC120 | 124.2" | CC150 | 154.2" | CC195 | 199.2" | CC300 | 302.2" |
| CC90 | 94.2" | CC125 | 129.2" | CC155 | 159.2" | CC210 | 214.2" | CC330 | 332.2" |
| CC96 | 100.2" | CC128 | 132.2" | CC158 | 162.2" | CC240 | 242.2" | CC360 | 362.2" |
| CC105 | 109.2" | CC136 | 140.2" | CC162 | 166.2" | CC255 | 257.2" | CC390 | 392.2" |
| CC420 | 422.2" |
