87000 Series Ball Bearings

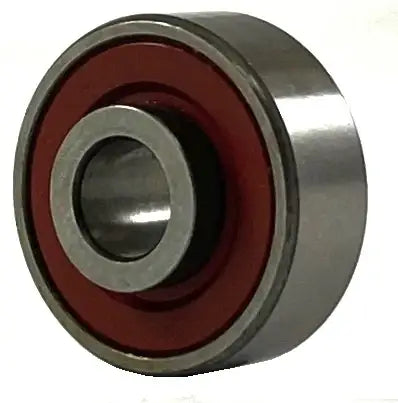

87000 bearings are manufactured with a seal on one side and a shield on the other and range in bore sizes from 5 millimeters up to 55 millimeters. These bearings are found in many industrial and agricultural applications including electric motor shops. They are also commonly referred to as felt series bearings because manufacturing standards use to use felt seals, however, the industry-standard now is to use rubber seals. More specific to 87000 bearings they have an extended inner race on one side making them suitable for applications requiring an extended inner race. For additional information or to get a quote please contact our customer service team and we will be happy to assist you!

87000 Bearing Sizes


Bearing Size d (mm) d (Inch) D (mm) D (Inch) Overall Width (B) Outer Width (B1) Inner Width (B1) Dynamic Load Rating (LBS) Static Load Rating (LBS) Grease Limiting Speed (RPM)
87035 5 0.1969 19 0.7480 0.406 0.315 0.386 524 198 18400
87036 6 0.2362 19 0.7480 0.406 0.315 0.386 524 198 18400
87006 6 0.2362 24 0.9449 0.406 0.315 0.386 747 314 18400
87037 7 0.2756 22 0.8661 0.406 0.315 0.386 740 306 18400
87007 7 0.2756 24 0.9449 0.406 0.315 0.386 747 317 18400
87038 8 03150 22 0.8661 0.406 0.315 0.386 740 306 18400
87008 8 0.3150 24 0.9449 0.406 0.315 0.386 747 317 18400
87009 9 0.3543 30 1.1811 0.500 0.354 0.480 1025 438 13600
87500 10 0.3937 30 1.1811 0.500 0.354 0.480 1047 456 13600
87011 11 0.4331 32 1.2598 0.500 0.394 0.480 1047 465 12000
87501 12 0.4724 32 1.2598 0.500 0.394 0.480 1375 626 12000
87013 13 0.5118 32 1.2598 0.500 0.394 0.480 1375 626 12000
87014 14 0.5512 35 1.3780 0.500 0.433 0.480 1375 626 10400
87502 15 0.5906 35 1.3780 0.500 0.433 0.480 1525 747 10400
87016 16 0.6299 35 1.3780 0.500 0.433 0.480 1525 747 10400
87602 15 0.6299 35 13780 0.500 0.433 0.480 1525 747 3200
87503 17 0.6693 40 1.5748 0.563 0.472 0.538 1940 976 9600
87603 17 0.6693 47 1.8504 0.630 0.551 0.591 1940 976 8800
87504 20 07874 47 1.8504 0.625 0.551 0.600 2885 1494 8000
87604 20 0.7874 52 2.0472 0.748 0.591 0.709 2885 1494 8000
87505 25 0.9843 52 2.0472 0.625 0.591 0.625 3150 1785 7120
87605 25 0.9843 62 2.4409 0.827 0.669 0.827 3150 1785 6480
87026 26 1.0236 52 2.0472 0.625 0.591 0.600 3150 1785 7120
87606 30 1.1811 62 2.8346 0.906 0.748 0.906 1970 1140 4640
85707 35 1.3780 72 2.8346 0.827 0.669 0.787 1970 1140 5040
87607 35 1.3780 80 3.1496 0.984 0.827 0.984 2120 1330 4800
87508 40 1.5748 80 3.1496 0.945 0.827 0.945 2960 1820 4480
87608 40 1.5748 90 3.5433 1.063 0.906 1.063 2960 1820 4240
87509 45 1.7717 85 3.3465 0.945 0.827 0.945 3300 2050 4160
87609 45 1.7717 100 3.9370 1.181 0.984 1.181 3300 2050 3760
87510 50 1.9685 90 3.5433 1.024 0.866 1.024 3560 2350 3760
87511 55 2.1654 100 3.9370 1.063 0.906 1.063 4390 2970 3440
