#80 Stainless steel Sprockets

80 Stainless Steel Sprockets

Our superior 80 stainless steel sprockets are meticulously manufactured to precision tolerances under ANSI B29 dimensions for optimal performance and long-term durability. We stock a broad range of standard tooth-count 80 stainless steel sprockets and also supply custom-made stainless steel sprockets. For additional information or to obtain a quote on our premium 80 stainless steel sprockets, please contact our customer service team, and we will be happy to assist you.

80 Stainless Sprocket Size Chart

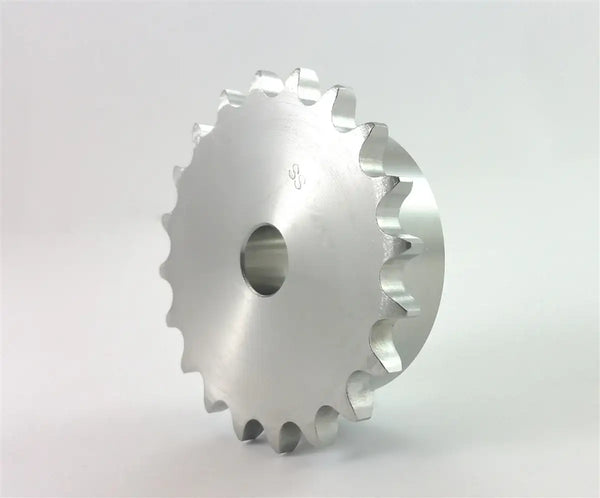

80 stainless steel sprockets





Part # Tooth Count Outside Diameter Stock Bore Max. Recommended Bore Hub Diameter Length Through Bore Weight
80B10SS 10 3.680 1 1.5 2.5625 1.625 2.14
80B11SS 11 4.010 1 1.625 2.8125 1.625 2.72
80B12SS 12 4.330 1 1.875 3.125 1.625 3.42
80B13SS 13 4.660 1 2 3 1.5 3.53
80B14SS 14 4.980 1 2.25 3.25 1.5 4.19
80B15SS 15 5.300 1 2.5 3.8125 1.5 5.38
80B16SS 16 5.630 1 2.75 4 1.5 6.07
80B17SS 17 5.950 1 2.75 4 1.5 6.45
80B18SS 18 6.270 1 2.75 4.25 1.5 7.34
80B19SS 19 6.590 1 2.75 4.25 1.5 7.80
80B20SS 20 6.910 1 2.75 4.25 1.5 8.22
80B21SS 21 7.240 1 2.75 4.25 1.75 9.40
80B22SS 22 7.560 1 2.75 4.25 1.75 10.00
80B23SS 23 7.880 1 2.75 4.25 1.75 10.70
80B24SS 24 8.200 1 2.75 4.25 1.75 11.36
80B25SS 25 8.520 1 2.75 4.25 1.75 11.90
80B26SS 26 8.840 1.25 3.25 4.75 2 14.57
80B30SS 30 10.110 1.1875 3.25 4.75 2 17.50
80B35SS 35 11.710 1.1875 3.25 4.75 2 21.48
80B40SS 40 13.310 1.1875 3.25 4.75 2 26.00
