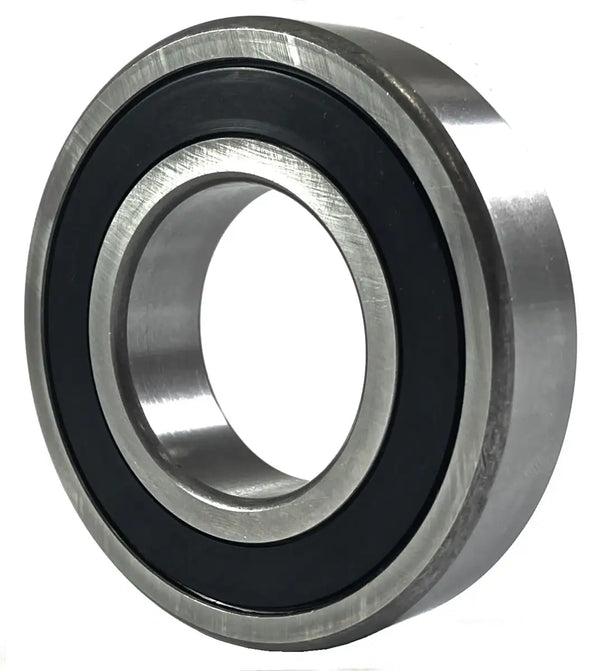

6400 Series Deep Groove Ball Bearings
6400 series ball bearings range in bore sizes from 17 millimeters up to 90 millimeters and are defined as a deep-groove ball bearing type. The purpose of a deep groove radial ball bearing is to reduce rotational friction and support loads. This is achieved with the use of an inner race and retainer that holds the individual balls in place for an even spread of the load capacity. The spherule shape of the balls creates a much lower coefficient of friction than that of two flat surfaces rotating. We supply 6400 series bearings in precision ratings ranging from ABE 1 ( industry standard) up to ABEC 7 (high-precision) as well as in materials such as stainless steel and ceramic. For additional information or to get a quote on 6400 series ball bearings contact our customer support team and we will be happy to assist you!6400 Series Ball Bearing Configurations
 Open (No Seal or Sheild) |
 RS (Seal on One Side) |
 2-RS (Seal on Both Sid) |
 Z (Shield on One Sides) |
 ZZ (Shields on Both Sides) |
 NR (Retaining Ring) |
|---|---|---|---|---|---|
6400 Series Ball Bearing Sizes
| Bearing Size | (d) | (D) | (B) | Dynamic Load (LBS) | Static Load (LBS) | Limiting Speed Grease (2RS) | Limiting Speed Grease (ZZ/ Open) | Limiting Speed Oil (Open) |
|---|---|---|---|---|---|---|---|---|
| 6403 | 17mm | 62mm | 17mm | 5,000LBS | 1,450LBS | 9,600 | 14,000 | 16,000 |
| 6403-2RS | 17mm | 62mm | 17mm | 5,000LBS | 1,450LBS | 9,600 | 14,000 | 16,000 |
| 6403-ZZ | 17mm | 62mm | 17mm | 5,000LBS | 1,450LBS | 9,600 | 14,000 | 16,000 |
| 6404 | 20mm | 72mm | 19mm | 7,000LBS | 3,350LBS | 8,400 | 12,000 | 14,000 |
| 6404-2RS | 20mm | 72mm | 19mm | 7,000LBS | 3,350LBS | 8,400 | 12,000 | 14,000 |
| 6404-ZZ | 20mm | 72mm | 19mm | 7,000LBS | 3,350LBS | 8,400 | 12,000 | 14,000 |
| 6405 | 25mm | 80mm | 21mm | 8,000LBS | 4,300LBS | 7,200 | 10,000 | 12,000 |
| 6405-2RS | 25mm | 80mm | 21mm | 8,000LBS | 4,300LBS | 7,200 | 10,000 | 12,000 |
| 6405-ZZ | 25mm | 80mm | 21mm | 8,000LBS | 4,300LBS | 7,200 | 10,000 | 12,000 |
| 6406 | 30mm | 90mm | 23mm | 9,800LBS | 5,300LBS | 6,000 | 8,600 | 10,000 |
| 6406-2RS | 30mm | 90mm | 23mm | 9,800LBS | 5,300LBS | 6,000 | 8,600 | 10,000 |
| 6406-ZZ | 30mm | 90mm | 23mm | 9,800LBS | 5,300LBS | 6,000 | 8,600 | 10,000 |
| 6407 | 35mm | 100mm | 25mm | 12,200LBS | 6,900LBS | 5,400 | 7,800 | 9,000 |
| 6407-2RS | 35mm | 100mm | 25mm | 12,200LBS | 6,900LBS | 5,400 | 7,800 | 9,000 |
| 6407-ZZ | 35mm | 100mm | 25mm | 12,200LBS | 6,900LBS | 5,400 | 7,800 | 9,000 |
| 6408 | 40mm | 110mm | 27mm | 14,300LBS | 8,200LBS | 4,920 | 7,000 | 8,200 |
| 6408-2RS | 40mm | 110mm | 27mm | 14,300LBS | 8,200LBS | 4,920 | 7,000 | 8,200 |
| 6408-ZZ | 40mm | 110mm | 27mm | 14,300LBS | 8,200LBS | 4,920 | 7,000 | 8,200 |
| 6409 | 45mm | 120mm | 29mm | 17,000LBS | 10,000LBS | 4,440 | 6,300 | 7,400 |
| 6409-2RS | 45mm | 120mm | 29mm | 17,000LBS | 10,000LBS | 4,440 | 6,300 | 7,400 |
| 6409-ZZ | 45mm | 120mm | 29mm | 17,000LBS | 10,000LBS | 4,440 | 6,300 | 7,400 |
| 6410 | 50mm | 130mm | 31mm | 19,200LBS | 11,500LBS | 3,990 | 5,700 | 6,650 |
| 6410-2RS | 50mm | 130mm | 31mm | 19,200LBS | 11,500LBS | 3,990 | 5,700 | 6,650 |
| 6410-ZZ | 50mm | 130mm | 31mm | 19,200LBS | 11,500LBS | 3,990 | 5,700 | 6,650 |
| 6411 | 55mm | 140mm | 33mm | 22,200LBS | 13,800LBS | 3,660 | 5,200 | 6,100 |
| 6411-2RS | 55mm | 140mm | 33mm | 22,200LBS | 13,800LBS | 3,660 | 5,200 | 6,100 |
| 6411-ZZ | 55mm | 140mm | 33mm | 22,200LBS | 13,800LBS | 3,660 | 5,200 | 6,100 |
| 6412 | 60mm | 150mm | 35mm | 24,000LBS | 15,000LBS | 3,420 | 4,750 | 5,700 |
| 6412-2RS | 60mm | 150mm | 35mm | 24,000LBS | 15,000LBS | 3,420 | 4,750 | 5,700 |
| 6412-ZZ | 60mm | 150mm | 35mm | 24,000LBS | 15,000LBS | 3,420 | 4,750 | 5,700 |
| 6413 | 65mm | 160mm | 37mm | 26,200LBS | 17,000LBS | 3,180 | 4,500 | 5,300 |
| 6413-2RS | 65mm | 160mm | 37mm | 26,200LBS | 17,000LBS | 3,180 | 4,500 | 5,300 |
| 6413-ZZ | 65mm | 160mm | 37mm | 26,200LBS | 17,000LBS | 3,180 | 4,500 | 5,300 |
| 6414 | 70mm | 180mm | 42mm | 32,000LBS | 23,000LBS | 3,000 | 4,000 | 5,000 |
| 6414-2RS | 70mm | 180mm | 42mm | 32,000LBS | 23,000LBS | 3,000 | 4,000 | 5,000 |
| 6414-ZZ | 70mm | 180mm | 42mm | 32,000LBS | 23,000LBS | 3,000 | 4,000 | 5,000 |
| 6415 | 75mm | 190mm | 45mm | 34,300LBS | 25,500LBS | 2,700 | 3,900 | 4,500 |
| 6415-2RS | 75mm | 190mm | 45mm | 34,300LBS | 25,500LBS | 2,700 | 3,900 | 4,500 |
| 6415-ZZ | 75mm | 190mm | 45mm | 34,300LBS | 25,500LBS | 2,700 | 3,900 | 4,500 |
| 6416 | 80mm | 200mm | 48mm | 36,500LBS | 28,100LBS | 2,520 | 3,650 | 4,200 |
| 6416-2RS | 80mm | 200mm | 48mm | 36,500LBS | 28,100LBS | 2,520 | 3,650 | 4,200 |
| 6416-ZZ | 80mm | 200mm | 48mm | 36,500LBS | 28,100LBS | 2,520 | 3,650 | 4,200 |
| 6417 | 85mm | 210mm | 52mm | 39,200LBS | 30,600LBS | 2,400 | 3,450 | 4,000 |
| 6417-2RS | 85mm | 210mm | 52mm | 39,200LBS | 30,600LBS | 2,400 | 3,450 | 4,000 |
| 6417-ZZ | 85mm | 210mm | 52mm | 39,200LBS | 30,600LBS | 2,400 | 3,450 | 4,000 |
| 6418 | 90mm | 225mm | 54mm | 41,800LBS | 33,700LBS | 2,280 | 3,000 | 3,800 |
| 6418-2RS | 90mm | 225mm | 54mm | 41,800LBS | 33,700LBS | 2,280 | 3,000 | 3,800 |
| 6418-ZZ | 90mm | 225mm | 54mm | 41,800LBS | 33,700LBS | 2,280 | 3,000 | 3,800 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
