5200 Series Bearings
5200 series bearings are double-row angular contact ball bearings ranging in bore sizes from 10mm up to 80mm. The dual row of balls means that this bearing type can handle higher radial and axial loads in either direction more so than a single-row deep groove ball bearing. We supply these bearings in an array of configurations including open, double sealed (-2RS), shielded (-ZZ), and with a snap ring. For additional information or to get a quote on 5200-series ball bearings contact our customer support team and we will be happy to assist you!

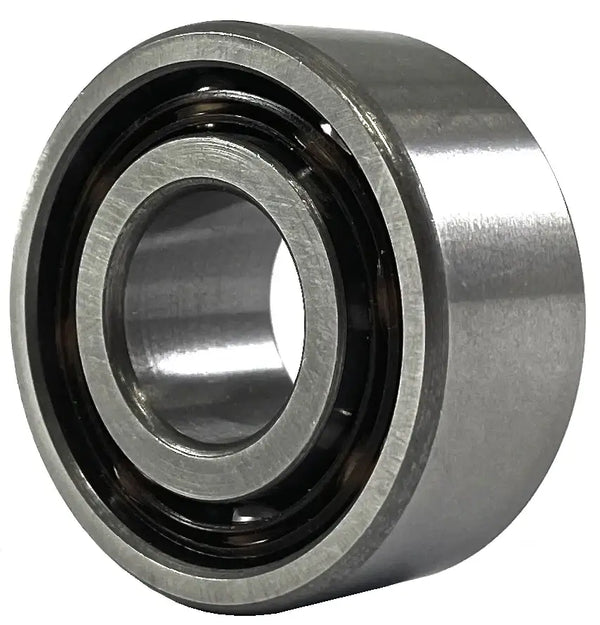

 Open (No Seal or Sheild) |
 RS (Seal on One Side) |

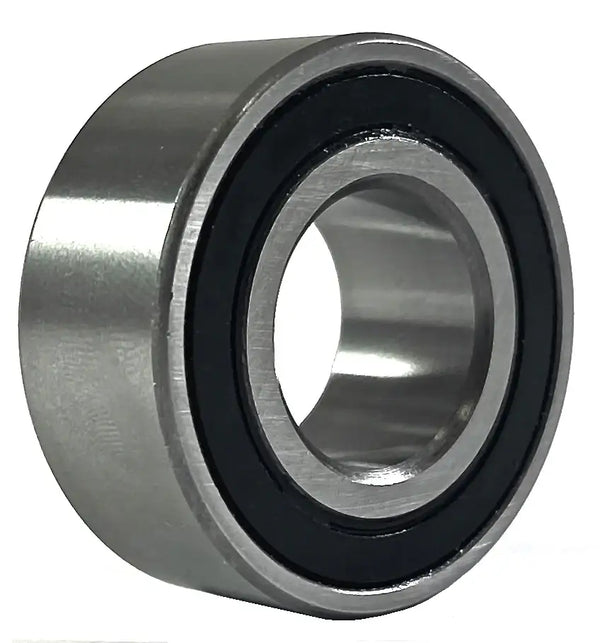

 2-RS (Seal on Both Sid) |
 Z (Shield on One Sides) |

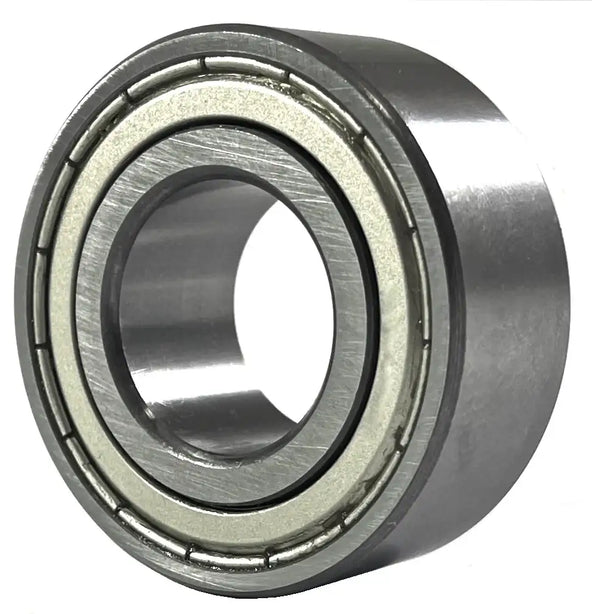

 ZZ (Shields on Both Sides) |
 NR (Retaining Ring) |
|---|---|---|---|---|---|
5200 Series Bearing Sizes
|
Bearing Size
|
d (mm)
|
D (mm)
|
B (mm)
|
Dynamic Load Rating (LBS)
|
Static Load Rating (LBS)
|
Limiting Speed 2RS (RPM)
|
Limiting Speed Open/ ZZ (RPM)
|
|---|---|---|---|---|---|---|---|
| 5200 | 10 | 30 | 9/16 | 1562 | 854 | 17000 | 24000 |
| 5201 | 12 | 32 | 5/8 | 2057 | 1135 | 15000 | 22000 |
| 5202 | 15 | 35 | 5/8 | 2248 | 1360 | 14000 | 18000 |
| 5203 | 17 | 40 | 11/16 | 2878 | 1776 | 12000 | 16000 |
| 5204 | 20 | 47 | 13/16 | 4271 | 2720 | 10000 | 14000 |
| 5205 | 25 | 52 | 13/16 | 4631 | 3215 | 8500 | 12000 |
| 5206 | 30 | 62 | 15/16 | 6429 | 4586 | 7500 | 10000 |
| 5207 | 35 | 72 | 1 1/16 | 8543 | 6250 | 6300 | 9000 |
| 5208 | 40 | 80 | 1 3/16 | 9554 | 7306 | 5600 | 8000 |
| 5209 | 45 | 85 | 1 3/16 | 10791 | 8318 | 5300 | 7500 |
| 5210 | 50 | 90 | 1 3/16 | 11465 | 9442 | 4800 | 7000 |
| 5211 | 55 | 100 | 1 5/16 | 14163 | 11915 | 4500 | 6300 |
| 5212 | 60 | 110 | 1 7/16 | 16074 | 13151 | 4000 | 5600 |
| 5213 | 65 | 120 | 1 1/2 | 18771 | 16299 | 3600 | 4800 |
| 5214 | 70 | 125 | 1 9/16 | 20345 | 17872 | 3400 | 4500 |
| 5215 | 75 | 130 | 1 5/8 | 20233 | 18097 | 3200 | 4500 |
| 5216 | 80 | 140 | 1 3/4 | 23830 | 21469 | 3000 | 3400 |
| 5217 | 85 | 150 | 1 15/16 | 25178 | 23830 | 2600 | 3800 |
| 5218 | 90 | 160 | 2 1/16 | 31473 | 29000 | 2500 | 3600 |
