3D QD Bushed Sheaves

3D QD Bushed Sheaves

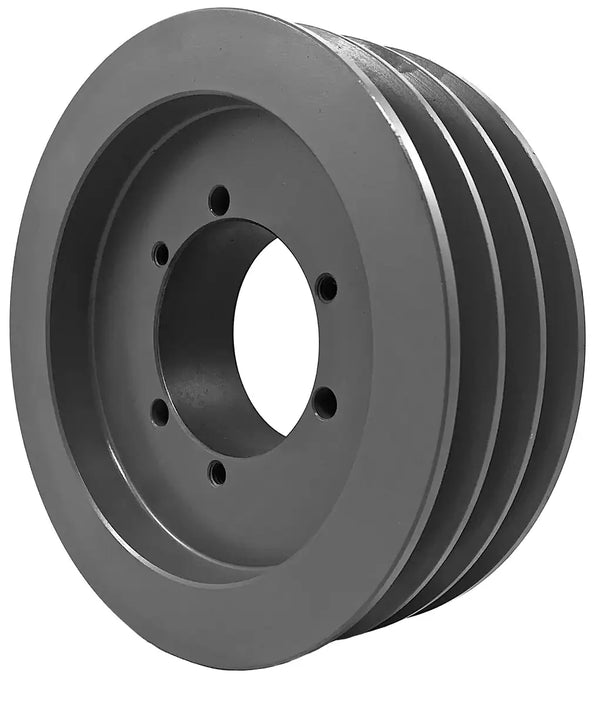

3D series three-groove QD bushed sheaves are manufactured for D-series classic v-belts, as well as D banded belts, they range from 12.64" to 40.64" in diameter. Depending on the sheave size they are made to use an F or J QD (quick detachable) bushings, which we also stock. The majority of our 3D QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated and painted for anti-corrosion, and all of them are balanced at the factory for smooth machinery operation.

3D QD Sheave Size Chart


Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
3D120F F A 12.0" 12.64" 5/32" 4-5/8" 3-3/4" 23/32" 70
3D130F F A 13.0" 13.64" 5/32" 4-5/8" 3-3/4" 23/32" 76
3D135F F A 13.5" 14.14" 5/32" 4-5/8" 3-3/4" 23/32" 79
3D140F F A 14.0" 14.64" 5/32" 4-5/8" 3-3/4" 23/32" 82
3D145F F A 14.5" 15.14" 5/32" 4-5/8" 3-3/4" 23/32" 85
3D150F F A 15.0" 15.64" 5/32" 4-5/8" 3-3/4" 23/32" 89
3D155F F A 15.5" 16.14" 5/32" 4-5/8" 3-3/4" 23/32" 92
3D160F F A 16.0" 16.64" 5/32" 4-5/8" 3-3/4" 23/32" 96
3D180J J D 18.0" 18.64" 1/4" 4-5/8" 4-5/8" 1/4" 110
3D200J J D 20.0" 20.64" 1/4" 4-5/8" 4-5/8" 1/4" 120
3D220J J D 22.0" 22.64" 1/4" 4-5/8" 4-5/8" 1/4" 130
3D270J J D 27.0" 27.64" 1/4" 4-5/8" 4-5/8" 1/4" 173
3D330J J D 33.0" 33.64" 1/4" 4-5/8" 4-5/8" 1/4" 240
3D400J J D 40.0" 40.64" 1/4" 4-5/8" 4-5/8" 1/4" 300
