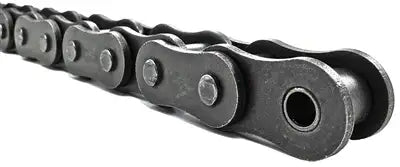

Heavy-Duty 12BH Roller Chain - 10ft Box
12BH Roller Chain Heavy 12BH Roller Chain
12BH Roller Chain Heavy

Alternative Views:
Note: Se Habla Espanol


Product Code: 12BH-ROLLER-CHAIN
Contact Us for Pricing and Availability

Description Technical Specs

Our 12BH heavy roller chain is a heavy-duty metric chain conforming to ISO and British standards dimensionally. This chain utilizes thicker sidebars to withstand shock loads and reduces elongation in demanding applications. 12B heavy chain is utilized in agriculture equipment, drives, conveying systems, plant machinery, and more applications! Our 12B heavy chain utilizes components that have been heat-treated and shot-peened for fatigue resistance and increased strength while also featuring solid round parts and wide-waste link plates for maximum chain life and performance. This chain is also factory pre-loaded, significantly reducing or eliminating initial and long-term elongation. 12BH chain is supplied in boxes containing a 10ft chain with one connecting link; alternative lengths are available upon request. It is important to note that a 12B heavy roller chain can be used on the same sprockets as a standard 12 chain; just ensure that clearance is available to accommodate the additional thickness of a heavy-duty chain if you are upgrading from standard. For more information or a quote on our premium 12BH roller chain, contact our customer support team; we will be happy to assist you!

12BH Heavy Chain Dimensions

12BH Heavy Chain Dimensions
  • Part #: 12BH
  • Pitch (P): 19.05mm
  • Roller Width (R): 11.68mm
  • Roller Diameter (D): 12.07mm
  • Overall Width (W): 25.00mm
  • Connecting Link Overall Width (X): 26.30mm
  • Plate Height (H): 16.80mm
  • Plate Thickness (T): 2.60mm
  • Pin Diameter (L): 6.10mm
  • Minimum Breaking Load: 4,079 KGS
  • Weight: 1.45 kG/ m
About Us
Features
    • Premium Quality Heavy-Duty Chain
    • Conforms To ISO and British Standards
    • Thicker Side Plates For Increased Load Rating
    • Factory Pre-Loaded
    • Shot-Peened Components
    • Heat-Treated Components
    • Interchanges With Other Brands
    • Supplied In 10ft Box Including One Connecting Link

Accessories
Heavy-Duty 12BH Roller Chain Connecting Link (Master Link) Heavy-Duty 12BH Offset Link
12BH Connecting Link 12BH Offset Link Heavy
