Mounted H Timing Belt Guide



Product Code: 7539-170143-BELT-GUIDE-H
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

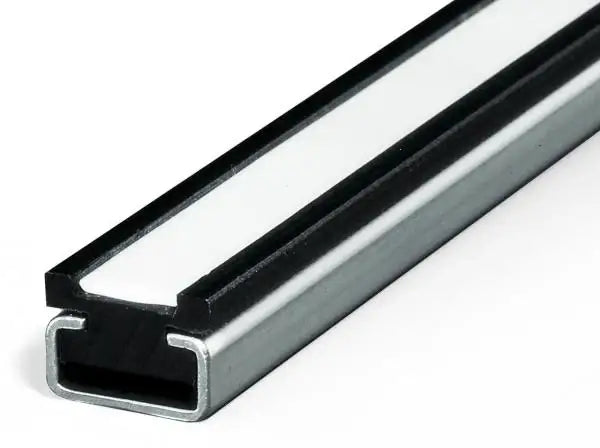

Our UHMW mounted XL timing belt guide is precision manufactured and engineered to increase the working life of XL timing belts while also reducing noise and friction. Mounted XL timing guides are supplied with galvanized or stainless steel mounting channel; the channel provides support for the guide and easy mounting into current systems. Standard timing belt guide and channel lengths are 10ft and 20ft, but specific lengths can be supplied upon request. We also supply the timing belt guide itself in alternate grades of UHMW to broaden the application usability.

Timing Belt Guide UHMW Options

  • Black Repro UHMW - Lower Material Cost
  • Oil-Filled UHMW - Higher Speed Rating
  • Green Repro UHMW - European DIN Standard
  • Static-Dissipative UHMW - Conductive
  • High-Temp UHMW (HT) - Operates Up To 275�F
We also stock a full array of timing belts, pulleys, and other power transmission components. For additional information or to get a quote contact our customer service team, and we will be happy to assist you!

Mounted XL Timing Belt Guide Dimensions


  • Part #: 170143-H
  • Belt Type: H
  • Belt Size (Pitch X Width): 1/2" X 3/4"
  • Mounting Channel Type: C3
  • Mounting Channel Material: Galvanized or Stainless Steel
  • Dimension (A): 0.71"
  • Dimension (B): 1.18"
  • Dimension (C): 0.79"
  • Dimension (D): 0.10"
About Us
Features
    • Reduces Noise
    • Increases Belt Wear Life
    • Reduces Friction
    • Made From High-Quality UHMW

Share your knowledge of this product. Be the first to write a review »
