MinVee Double Edge Tracks



Product Code: 2924-TDS0
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

MinVee double edge guide tracks are for size 0 v-guide bearings and are manufactured from carbon steel or stainless steel with precision tolerances for optimal performance and longevity. Size 0 MinVee guide tracks are available in a variety of lengths with standard hole spacings. Tracks can also be supplied as soft or induction hardened upon request. For additional information or getting a quote, don't hesitate to contact us, and we will be happy to assist you!

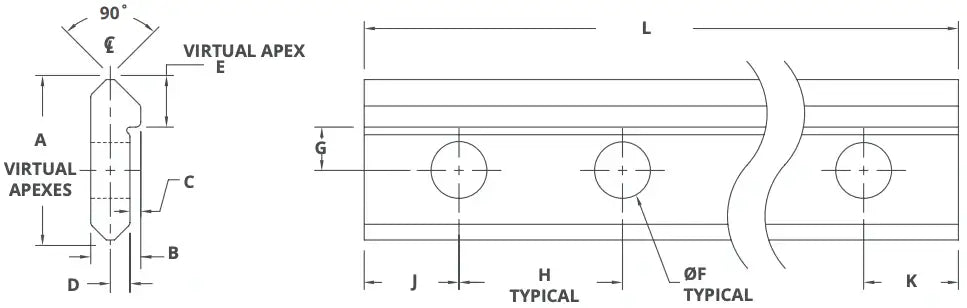

MinVee Guide Track Dimensions


  • Size: 0
  • Overall Width (A): 0.516"
  • Overall Height (B): 0.153"
  • Undercut Depth (C): 0.033"
  • Undercut To Vee (D): 0.060"
  • Shoulder To Vee Apex (E): 0.158"
  • Hole Diameter (F): 0.156"
  • Shoulder To Hole (G): 0.138"
  • Hole Spacing (H): 2.000"
  • Hole End Spacing 1 (J): 0.250"
  • Hole End Spacing 2 (K): 0.250"
  • Standard Length And # Of Holes: 6.50" (4-Holes)
  • Standard Length And # Of Holes: 12.50" (7-Holes)
  • Standard Length And # Of Holes: 18.50" (10-Holes)
  • Standard Length And # Of Holes: 24.50" (13-Holes)
  • Standard Length And # Of Holes: 30.50" (16-Holes)
  • Standard Length And # Of Holes: 36.50" (19-Holes)
About Us
Features
    • Swiss Made For Optimal Quality
    • Single Edge Track
    • Polished and Oiled Track Finish
    • Machined To Precision Tolerances
    • Highly Versatile Design
