A101 V-Belt - 103" A-Section A101 Belt (4L1030 Belt)

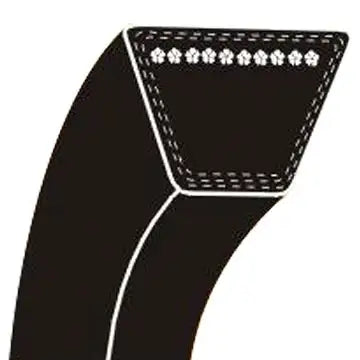

A101 V-Belt A-section A101 belt
A101 V-Belt A-section A101 belt

Note: Premium Quality V-Belt
Note: Quantity Discounts Available


Product Code: A101-V-BELT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs


When you need quality at a reasonable cost for your belt-drive applications, USA Roller Chain has your classic A101 V-belt ready and in stock today. Each 4L1030 belt comes with integrated heat and natural oil resistance, along with premium quality that shows. Our belts employ a mixture of high-strength polyester, natural rubber, cotton-poly blend and styrene-butadiene rubber to create a long-term solution for your belt-drive pulleys.

Don't settle for an A101 belt that's built for the budget-friendly crowd. Our belts are created with tandem applications in mind. Trust in our specifications because they're backed by ARPM standards and our quality assurance. Each belt has an overall outside length of 103 inches and is less than a pound in weight. If you're looking for a replacement belt for John Deere D130, for example, you have a solution in our stock.


A101 V-Belt Construction:
  • Cover - High-quality cotton/ polyester blend
  • Compound - Natural rubber/ styrene-butadiene rubber (SBR)
  • Cord - High-strength polyester
Note: We also have Cogged V-Belts which include longer operational life, cooler running, and around a 2% higher efficiency raring than a standard v-belt.

A101 V-Belt Dimensions

  • Belt Size: A101
  • Top Width: 0.66"
  • Thickness: 0.41"
  • Angel: 40 Degrees
  • Outside Length: 103"
  • Weight: 0.50 LBS
  • Interchanges: A-101, 4L1030

A101 V-Belt Pulleys

Our A-section v-belt pulleys are made to ARPM standards, are extreme performance parts, and boast premium features at budget-friendly prices. The charts below show the standard pulley sizes, for additional or custom options, please contact us and we will be happy to assist you.

AK V-Belt Pulleys:
Size Outside Diameter Pitch Diameter (4L/A) Pitch Diameter (3L) Type Dimension (F) Dimension (L) Dimension (P) Dimension (C) Pulley Weight
AK17 1.75" 1.50" 1.16" 1 21/32" 15/16" 7/16" 5/32" 0.2 LBS
AK20 2.00" 1.80" 1.46" 1 21/32" 15/16" 7/16" 5/32" 0.3 LBS
AK21 2.10" 1.90" 1.56" 1 21/32" 15/16" 7/16" 5/32" 0.4 LBS
AK22 2.20" 2.00" 1.66" 1 21/32" 15/16" 7/16" 5/32" 0.5 LBS
AK23 2.30" 2.10" 1.76" 1 21/32" 15/16" 7/16" 5/32" 0.5 LBS
AK25 2.50" 2.30" 1.96" 2 21/32" 15/16" 7/16" 5/32" 0.5 LBS
AK26 2.60" 2.40" 2.06" 2 21/32" 15/16" 7/16" 5/32" 0.5 LBS
AK27 2.70" 2.50" 2.16" 2 21/32" 15/16" 7/16" 5/32" 0.6 LBS
AK28 2.80" 2.60" 2.26" 2 21/32" 15/16" 7/16" 5/32" 0.7 LBS
AK30 3.05" 2.80" 2.46" 2 21/32" 15/16" 7/16" 5/32" 0.7 LBS
AK32 3.25" 3.00" 2.66" 2 21/32" 15/16" 7/16" 5/32" 0.7 LBS
AK34 3.45" 3.20" 2.86" 2 21/32" 15/16" 7/16" 5/32" 0.9 LBS
AK39 3.75" 3.50" 3.16" 2 3/4" 1-5/32" 15/32" 1/16" 1.4 LBS
AK41 3.95" 3.70" 3.36" 2 3/4" 1-5/32" 15/32" 1/16" 1.5 LBS
AK44 4.25" 4.00" 3.66" 3 3/4" 1-5/32" 15/32" 1/16" 1.5 LBS
AK46 4.45" 4.20" 3.86" 3 3/4" 1-5/32" 15/32" 1/16" 1.5 LBS
AK49 4.75" 4.50" 4.16" 3 3/4" 1-5/32" 15/32" 1/16" 1.7 LBS
AK51 4.95" 4.70" 4.36" 3 3/4" 1-5/32" 15/32" 1/16" 1.7 LBS
AK54 5.25" 5.00" 4.66" 3 3/4" 1-5/32" 15/32" 1/16" 1.8 LBS
AK56 5.45" 5.20" 4.86" 3 3/4" 1-5/32" 15/32" 1/16" 1.9 LBS
AK59 5.75" 5.50" 5.16" 3 3/4" 1-5/32" 15/32" 1/16" 2.0 LBS
AK61 5.95" 5.70" 5.36" 3 3/4" 1-5/32" 15/32" 1/16" 2.1 LBS
AK64 6.25" 6.00" 5.66" 3 3/4" 1-5/32" 15/32" 1/16" 2.2 LBS
AK66 6.45" 6.20" 5.86" 3 3/4" 1-5/32" 15/32" 1/16" 2.3 LBS
AK69 6.75" 6.50" 6.16" 3 3/4" 1-15/32" 23/32" -- 3.5 LBS
AK71 6.95" 6.70" 6.36" 3 3/4" 1-15/32" 23/32" -- 3.8 LBS
AK74 7.25" 7.00" 6.66" 3 3/4" 1-15/32" 23/32" -- 3.4 LBS
AK79 7.75" 7.50" 7.16" 3 3/4" 1-15/32" 23/32" -- 4.0 LBS
AK84 8.25" 8.00" 7.66" 3 3/4" 1-15/32" 23/32" -- 3.8 LBS
AK89 8.75" 8.50" 8.16" 3 3/4" 1-15/32" 23/32" -- 4.3 LBS
AK94 9.25" 9.00" 8.68" 3 3/4" 1-15/32" 23/32" -- 4.5 LBS
AK99 9.75" 9.50" 9.16" 3 3/4" 1-15/32" 23/32" -- 5.3 LBS
AK104 10.25" 10.00" 9.66" 3 3/4" 1-15/32" 23/32" -- 5.1 LBS
AK109 10.75" 10.50" 10.16" 3 3/4" 1-15/32" 23/32" -- 5.8 LBS
AK114 11.25" 11.00" 10.66" 3 3/4" 1-15/32" 23/32" -- 5.6 LBS
AK124 12.25" 12.00" 11.66" 3 3/4" 1-15/32" 23/32" -- 6.5 LBS
AK134 13.25" 13.00" 12.66" 3 3/4" 1-15/32" 23/32" -- 7.5 LBS
AK144 14.25" 14.00" 13.66" 3 3/4" 1-15/32" 23/32" -- 8.5 LBS
AK154 15.25" 15.00" 14.66" 3 3/4" 1-15/32" 23/32" -- 9.8 LBS
AK184 18.25" 18.00" 17.66" 3 3/4" 1-15/32" 23/32" -- 12.1 LBS
2AK V-Belt Pulleys:
Size Outside Diameter Pitch Diameter (4L/A) Pitch Diameter (3L) Type Dimension (F) Dimension (L) Dimension (P) Dimension (C) Pulley Weight
2AK20 2.00" 1.80" 1.46" 1 1-3/8" 1-21/32" 15/32" 3/16" 0.8 LBS
2AK21 2.15" 1.90" 1.56" 1 1-3/8" 1-21/32" 15/32" 3/16" 0.9 LBS
2AK22 2.25" 2.00" 1.66" 1 1-3/8" 1-21/32" 15/32" 3/16" 0.9 LBS
2AK23 2.35" 2.10" 1.76" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.1 LBS
2AK25 2.55" 2.30" 1.96" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.3 LBS
2AK26 2.65" 2.40" 2.06" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.4 LBS
2AK27 2.75" 2.50" 2.16" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.5 LBS
2AK28 2.85" 2.60" 2.26" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.8 LBS
2AK30 3.05" 2.80" 2.46" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.8 LBS
2AK32 3.25" 3.00" 2.66" 1 1-3/8" 1-21/32" 15/32" 3/16" 2.1 LBS
2AK34 3.45" 3.20" 2.86" 1 1-3/8" 1-21/32" 15/32" 3/16" 2.3 LBS
2AK39 3.75" 3.50" 3.16" 2 1-3/8" 1-11/32" 15/32" 1/2" 2.6 LBS
2AK41 3.95" 3.70" 3.36" 2 1-3/8" 1-11/32" 15/32" 1/2" 2.9 LBS
2AK44 4.25" 4.00" 3.66" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.0 LBS
2AK46 4.45" 4.20" 3.86" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.1 LBS
2AK49 4.75" 4.50" 4.16" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.6 LBS
2AK51 4.95" 4.70" 4.36" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.8 LBS
2AK54 5.25" 5.00" 4.66" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.3 LBS
2AK56 5.45" 5.20" 4.86" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.4 LBS
2AK59 5.75 " 5.50" 5.16" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.5 LBS
2AK61 5.95" 5.70" 5.36" 3 1-3/8" 1-11/32" 15/32" 1/2" 3.6 LBS
2AK64 6.25" 6.00" 5.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 4.8 LBS
2AK74 7.25" 7.00" 6.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 5.6 LBS
2AK84 8.25" 8.00" 7.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 6.4 LBS
2AK94 9.25" 9.00" 8.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 7.3 LBS
2AK104 10.25" 10.00" 9.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 8.1 LBS
2AK114 11.25" 11.00" 10.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 9.0 LBS
2AK124 12.25" 12.00" 11.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 9.8 LBS
2AK134 13.25" 13.00" 12.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 12.3 LBS
2AK144 14.25" 14.00" 13.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 13.9 LBS
2AK154 15.25" 15.00" 14.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 14.3 LBS
2AK184 18.25" 18.00" 17.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 17.4 LBS
AKH V-Belt Pulleys:
Size Outside Diameter Pitch Diameter (4L/A) Pitch Diameter (3L) Type Dimension (O.L.) Dimension (F) Dimension (L) Dimension (P) Dimension (C) Dimension (X) Dimension (G) Dimension (E) Pulley Weight (LBS)
AK30H 3.05" 2.80" 2.46" 1 1-13/16" 3/4" 1-1/4" 7/8" -- 1-3/16" 7/16" 3/16" 0.2
AK32H 3.25" 3.00" 2.66" 1 1-13/16" 3/4" 1-1/4" 7/8" -- 1-3/16" 7/16" 3/16" 0.3
AK34H 3.45" 3.20" 2.86" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.4
AK39H 3.75" 3.50" 3.16" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.5
AK41H 3.95" 3.70" 3.36" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.5
AK44H 4.25" 4.00" 3.66" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.5
AK46H 4.45" 4.20" 3.86" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.5
AK49H 4.75" 4.50" 4.16" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.6
AK51H 4.95" 4.70" 4.36" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.7
AK54H 5.25" 5.00" 4.66" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.7
AK56H 5.45" 5.20" 4.86" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.7
AK59H 5.75" 5.50" 5.16" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.9
AK61H 5.95" 5.70" 5.36" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.4
AK64H 6.25" 6.00" 5.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.5
AK66H 6.45" 6.20" 5.86" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.5
AK69H 6.75" 6.50" 6.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.5
AK71H 6.95" 6.70" 6.36" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.7
AK74H 7.25" 7.00" 6.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.7
AK79H 7.75" 7.50" 7.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.8
AK84H 8.25" 8.00" 7.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.9
AK89H 8.75" 8.50" 8.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 2.0
AK94H 9.25" 9.00" 8.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 2.1
AK99H 9.75" 9.50" 9.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 2.2
AK104H 10.25" 10.00" 9.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 2.3
AK109H 10.75" 10.50" 10.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 3.5
AK114H 11.25" 11.00" 10.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 3.8
AK124H 12.25" 12.00" 11.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 3.4
AK134H 13.25" 13.00" 12.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 4.0
AK144H 14.25" 14.00" 13.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 3.8
AK154H 15.25" 15.00" 14.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 4.3
AK184H 18.25" 18.00" 17.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 4.5
2AKH V-Belt Pulleys:

Size Outside Diameter Pitch Diameter (4L/A) Pitch Diameter (3L) Type Dimension (O.L.) Dimension (F) Dimension (L) Dimension (P) Dimension (C) Dimension (X) Dimension (G) Dimension (E) Pulley Weight (LBS)
2AK30H 3.05" 2.80" 2.46" 1 2-7/16" 1-3/8" 1-1/4" 7/8" 15/16" 7/8" 7/16" 3/16" 1.4
2AK32H 3.25" 3.00" 2.66" 1 2-7/16" 1-3/8" 1-1/4" 7/8" 15/16" 7/8" 7/16" 3/16" 1.7
2AK34H 3.45" 3.20" 2.86" 1 2" 1-3/8" 1-1/4" 7/16" 1/2" 7/8" 7/16" 3/16" 1.8
2AK39H 3.75" 3.50" 3.16" 1 2" 1-3/8" 1-1/4" 7/16" 1/2" 7/8" 7/16" 3/16" 1.8
2AK41H 3.95" 3.70" 3.36" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 1.9
2AK44H 4.25" 4.00" 3.66" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 2.4
2AK46H 4.45" 4.20" 3.86" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 2.5
2AK49H 4.75" 4.50" 4.16" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 3.1
2AK51H 4.95" 4.70" 4.36" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 3.2
2AK54H 5.25" 5.00" 4.66" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 3.4
2AK56H 5.45" 5.20" 4.86" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 3.6
2AK59H 5.75" 5.50" 5.16" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 3.4
2AK61H 5.95" 5.70" 5.36" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 3.3
2AK64H 6.25" 6.00" 5.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 3.9
2AK74H 7.25" 7.00" 6.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 4.9
2AK84H 8.25" 8.00" 7.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 5.8
2AK94H 9.25" 9.00" 8.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 6.1
2AK104H 10.25" 10.00" 9.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 7.7
2AK114H 11.25" 11.00" 10.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 8.5
2AK124H 12.25" 12.00" 11.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 9.5
2AK134H 13.25" 13.00" 12.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 11.9
2AK144H 14.25" 14.00" 13.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 11.9
2AK154H 15.25" 15.00" 14.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 13.3
2AK184H 18.25" 18.00" 17.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 16.8

About Us
Features
    • Premium V-Belt
    • Conforms To ARPM Standard IP 20
    • Extremely Durable
    • Oil & Heat Resistant
