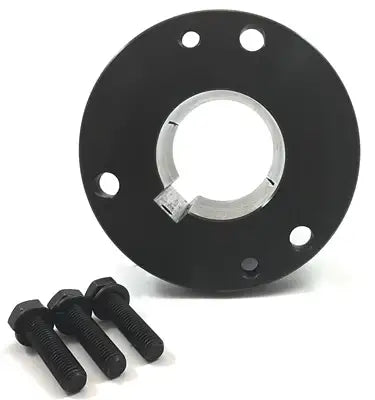

W1 Bushing X 3-7/16" Bore

This W1 Bushing with 3-7/16" bore is a high-quality precision product that is built for durability and strength. W1 bushings are used in an extensively wide range of applications, including; sprockets, sheaves, pulleys, gears, and much more, we also offer all of these products. What sets this bushing apart is the high-quality cast construction along with precise manufacturing and high-quality control; this ensures that you always get a premium quality consistent product. What really sets USA Roller Chain apart from the other guys is our highly trained expert staff members and our company-wide goal of customer satisfaction. For more information or for a large quantity quote please contact us and we will be happy to assist you!

W1 3-7/16" Busing Dimensions

• Bushing Type: W1
• Bore Size: 3-7/16"
• Key-Way Size: 7/8" X 7/16"
• Dimension (L): 8-1/4"
• Dimension (U): 1-7/16"
• Dimension (T): 6-13/16"
• Dimension (D - Large End): 8.500"
• Dimension (D - Small End): 8.1016"
• Dimension (H): 12-1/2"
• Dimension (V): 10"
• Dimension (W): 1-1/4"
• Dimension (X): 6-3/8"
• Dimension (Y): 7/16"
• Dimension (R): 7/16"
• Dimension (S): 9/16"
• Amount Of Cap Screws: 4
• Cap Screw Size: 3/4" X 3"
• Bushing Weight: 104 LBS
• Wrench Torque: 3,000 LBS

Installation

1. Be sure the tapered cone surfaces of the bushing and the inside of the driven product are clean and free of anti-seize lubricants.
2. Place the bushing in sprocket or another part type that accepts the bushing.
3. Place cap screws loosely in pull-up holes. The bushing remains loose to assure sliding fit on the shaft.
4. With key on the shaft, slide the sprocket or another part type to the desired position on the shaft. Be sure to leave the heads of the cap screws accessible.
5. Align the sprocket or part type, tighten the screws alternatively and progressively until they are pulled up tight. Do not use extensions on the wrench handles and do not allow the sprocket or part to be drawn in contact with the flange of the bushing. At this point, there should be a gap between the bushing flange and sprocket, make sure this gap does not close.

Removal

1. Loosen and remove cap-screws.
2. Insert cap-screws in tapped removal holes.
3. Tighten inserted screws until sprocket or other part type is loose on the shaft.
4. Remove sprocket/ part type from the shaft.


Warnings: use of anti-seize lubricant on tapered cone surfaces or on bolt threads when mounting may result in damage to sheaves and sprockets. This voids all manufacture's warranties.
