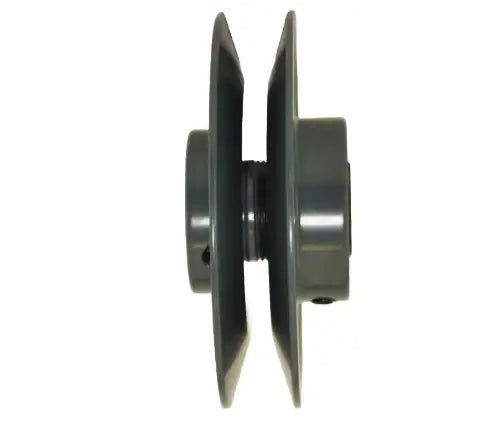

Variable Pitch 1VP60 Pulley 3/4"

Alternative Views:

Our Price: $95.99

Note: Fits Belt Types: 3L, 4L, A, AX
Note: Made From Extreme Duty Cast Iron
Note: Phosphated and Painted For Corrosion Resistance
Note: Dynamically Balanced For Smooth Operation/ Extended Equipment Life

Product Code: 1VP60-PULLEY-34

Qty:

Description

Technical Specs

Variable Pitch 1VP60 Pulley 3/4" is designed and engineered in a way that allows for precise adjustments in diameter, which will also correlate to speed adjustment. Our single-groove variable pitch pulleys are manufactured with extremely tight thread tolerances and use a high-quality cast iron material. They are extremely well balanced to reduce vibrations and are phosphated and painted for corrosion resistance. Besides 1VP60 pulleys with a 3/4" bore we also stock a full line of high-quality performance 3L, A, 4L, and AX v-belts as well as a full line of industrial power transmission components.

1VP60 Pulley 3/4" Dimensions

Pulley Size: 1VP60
Bore Size: 3/4"
Keyway Size: 3/16" X 3/32"
4L/ A Minimum Datum: 4.2"
Turns Open: 5
4L/ A Maximum Datum: 5.2"
Turns Open: 0
Pulley Type: 2
Outside Diameter: 6.00"
Dimension (F) Maximum: 1-1/4"
Dimension (F) Minimum: 7/8"
Dimension (G) Maximum: 1-1/32"
Dimension (G) Minimum: 21/32"
Dimension (L): 1-21/32"
Dimension (K): 7/16"
Pulley Weight: 6.5 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get a formal quote on an 1VP60 variable pitch pulley with 3/4" bore and other products please contact us and we will be happy to assist you.
