SS856 K3 Attachment
SS856 K3 Attachment

Get a Quote
Call to Order 407-347-3519

Description Technical Specs

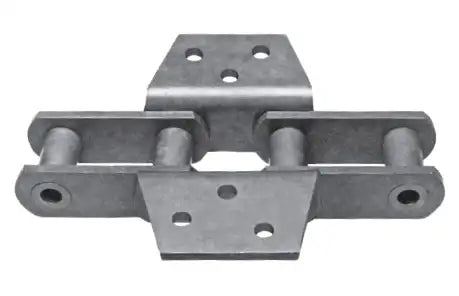

This SS856 K3 attachment is a premium high-strength attachment that is manufactured specifically for SS856 chain and can be assembled in any configuration needed. To get a quote for SS856 chain with K3 attachments or for more information please contact us and we will be happy to assist you!

Dimensions:

  • Attachment Type: SS856 K3
  • Pitch (P): 6.00"
  • Dimension (A): 6.56"
  • Dimension (B): 3.00"
  • Dimension (C): 1.88"
  • Bolt Diameter (D): 0.50"
  • Hole Diameter (D): 0.56"
  • Dimension (E): 4.25"
  • Dimension (F): 2.75"
  • Dimension (G): 13.50"
  • Dimension (H): 13.56"
  • Dimension (J): 1.38"
  • Dimension (M): 10.94"
  • Dimension (N): 12.06"
  • Dimension (T): 0.50"
  • Weight Per Foot: 27.3 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"
About Us
Features
    • High Quality Attachment
    • Can Be Assembled In Any Configuration
    • Extremely Durable
    • High Resistance to Abrasion
    • Ultra High Strength
