North American Electric NBS-203-3-25 Reducer

NBS-203-3-25 Gearbox

Alternative Views:

Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years

Availability: Typically In-Stock
Product Code: NBS203-3-25-REDUCER

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

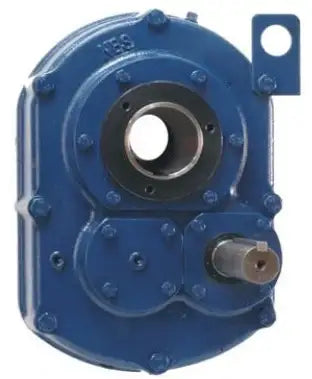

North American Electric NBS-203-3-25 Reducer is a high quality and durable size 3, 25:1 ratio gearbox. This reducer will directly interchange with the popular TXT series gearboxes as well as other brands too. The NBS-203-3-25 Reducer features case hardened steel shafts and gears, CEMA adapter bolt holes, double lip seals, high quality bearings, a corrosion resistant case, and fully meets or exceeds AGMA 9 standards. One thing that really sets this reducer apart is that it is screw conveyor adaptable!

NBS-203-3-25 Dimensions

Part #: NBS-203-3-25
Ratio: 25:1
Box Size: 3
Dimension (L): 9.25"
Dimension (M): 12.88"
Dimension (N): 9.22"
Dimension (F): 1.25" Length
Key: 0.25" X 0.125" X 2.875"
Maximum Dimension (B): 2-3/16""
Dimension (C): 1.50"
Dimension (E): 4.38"
Dimension (G): 2.34"
Dimension (W): 1.06"
Dimension (U): 1.25"
Dimension (X): 4.52"
Dimension (V): 3.30"
Dimension (Q): 4.34"
Dimension (Y): 1.59"
Dimension (H): 5.63"
Dimension (A1): 2.33"
Dimension (A2): 4.78"
Dimension (A3): 4.17"
Dimension (h): 4.84"
Minimum Dimension (R): 26.94"
Maximum Dimension (R): 32.94"
Dimension (P): 0.44"
Dimension (T): 3.00"
Gear Box Weight: 106 LBS

Please note that North American Electric shaft mount reducers are shipped without oil. The reducer must be filled with the proper amount of oil according to the mounting table below. Failure to fill the case with oil could result in the failure of the reducer and damage to the associated equipment.

Mounting Table:

For additional information or to get a quote on NBS-203-3-25 reducer please contact us and we will be happy to assist you.
