MSR6272 Meat Packing Chain

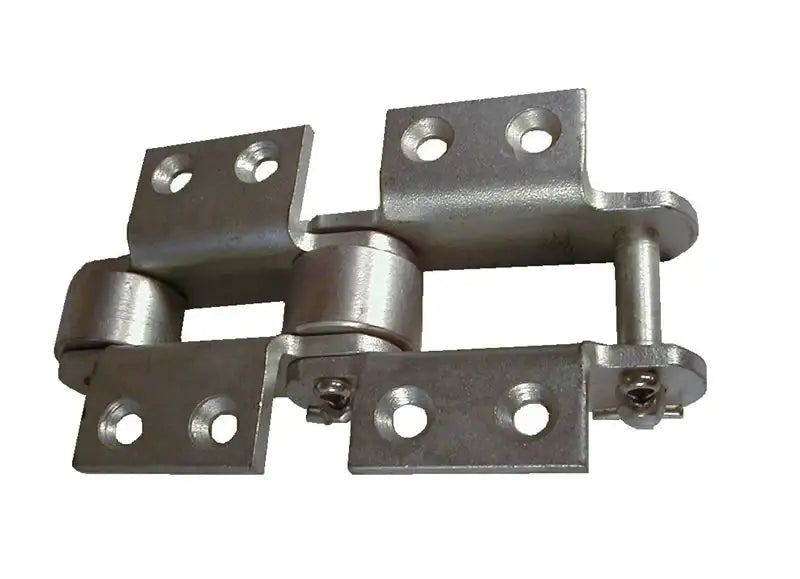

MSR6272 Meat Packing Chain
MSR6272 Meat Packing Chain

Get a Quote
Call to Order 407-347-3519

Description Technical Specs

MSR6272 Meat Packing Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This MSR6272 packing Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality MSR6272 sprockets with very short lead-times. For more information or to get a quote on MSR6272 meat packing chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:

  • Chain #: MSR6272
  • Pitch: 6.000"
  • Pin Diameter (E): 0.625"
  • Overall Width Cottered (C2): 3.25"
  • Sidebar Height (H): 1.50"
  • Roller Diameter (D): 2.25"
  • Sidebar Thickness (T): 0.31"
  • Distance Between Sidebars (W): 1.31"
  • Length Of Bushing (X): 1.94"
  • Average Ultimate Strength: 28,000 LBS
  • Maximum Recommended Working Load: 3,150 LBS
  • Links Per 10ft: 20
  • Weight Per Foot: 9.2 LBS
  • Pin Material: Case-Hardened Electro-Galvanized Carbon Steel
  • Bushing Material: Heat-Treated Stainless Steel
  • Roller Material: Case-Hardened Electro-Galvanized Carbon Steel
  • Roller Insert Material: Plastic
  • Sidebar Material: Electro-Galvanized Carbon Steel
  • Cotter Material: Stainless Steel Wire Cotter
  • Style: Cottered Only

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • High Quality Roller Chain
    • Extremely Durable
    • Heat-Treated or Hardened Component
    • Solid Components
