MSR4019 K2 Attachment

MSR4019 K2 Attachment
MSR4019 K2 Attachment

Get a Quote
Call to Order 407-347-3519

Description Technical Specs

This MSR4019 K2 attachment is a premium high-strength attachment that is manufactured specifically for MSR4019 chain and can be assembled in any configuration needed. To get a quote for MSR4019 chain with K2 attachments or for more information please contact us and we will be happy to assist you!

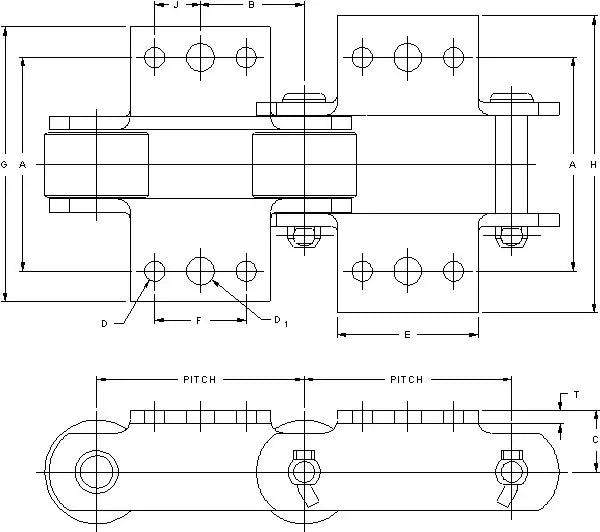

Dimensions:

  • Attachment #: MSR4019-K2
  • Pitch: 4.00"
  • Dimension (A): 2.75"
  • Dimension (B): 2.00"
  • Dimension (C): 0.88"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Bolt Diameter (D1): 0.38"
  • Hole Diameter (D1): 0.41"
  • Dimension (E): 2.50"
  • Dimension (F): 1.50"
  • Dimension (G): 3.75"
  • Dimension (H): 3.81"
  • Dimension (J): 0.25"
  • Dimension (T): 0.25"
  • Weight: 5.3 LBS/ FT

Phone: (407) 347-3519
Email:
sales@usarollerchain.com
About Us
Features
    • High Quality Attachment
    • Can Be Assembled In Any Configuration Needed
    • Heat-Treated Or Hardened Construction
    • Extremely Durable
