MSR1539 A2 Attachment
MSR1539 A2 Attachment
MSR1539 A2 Attachment

Get a Quote
Call to Order 407-347-3519

Description Technical Specs

This MSR1539 A2 attachment is a premium high-strength attachment that is manufactured specifically for MSR1539 chain and can be assembled in any configuration needed. To get a quote for MSR1539 chain with A2 attachments or for more information please contact us and we will be happy to assist you!

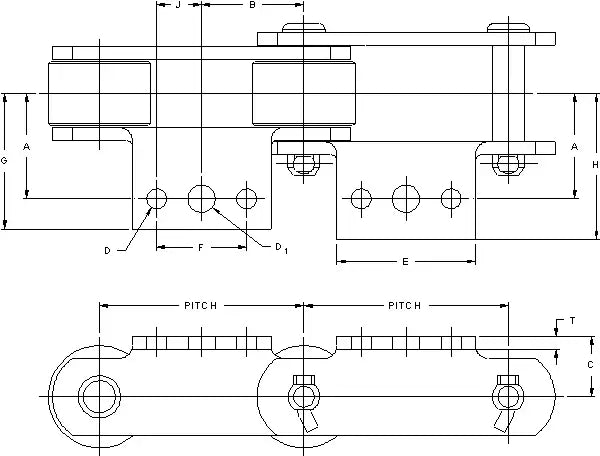

Dimensions:

  • Attachment #: MSR1539-A2
  • Pitch: 3.075"
  • Dimension (A): 2.00"
  • Dimension (B): 0.59"
  • Dimension (C): 1.25"
  • Bolt Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Dimension (E): 2.750"
  • Dimension (F): 1.88"
  • Dimension (G): 2.50"
  • Dimension (H): 2.59"
  • Dimension (T): 0.31"
  • Weight: 8.0 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • High Quality Attachment
    • Can Be Assembled In Any Configuration Needed
    • Heat-Treated Or Hardened Construction
    • Extremely Durable
