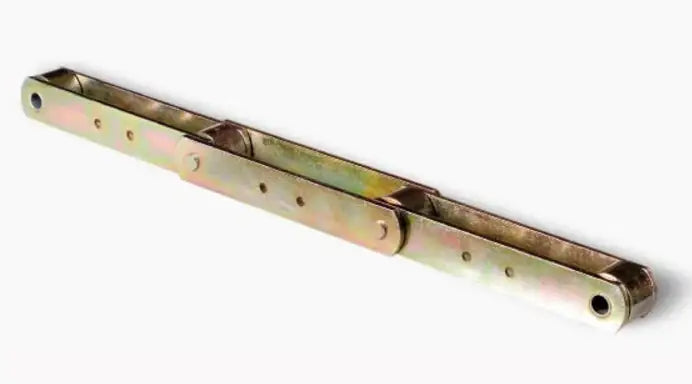

M20B40 Chain

Product Code: M20B40-CHAIN

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

M20B40 chain is a metric conveyor chain that is manufactured to ISO 1977 and DIN 8167 specifications. M series chains are some of the most universally used chains in the world, therefore this series caters for most mechanical handling requirements. This chain is supplied with an B style roller but additional styles and roller types are available upon request. A few things that sets our M20B40 chain apart from others is the heat treated components, precision manufacturing, and proven long term durability.

M20B40 Chain Dimensions

Chain Size: M20B40
Pitch (P): 40mm
Average Weight: 1.3KG/M
Roller Style: D1
Roller Diameter: 12.5mm
Pin Diameter (D6): 6mm
Overall Width (F1): 33mm
Dimension (F2): 18mm
Bushing Diameter (D45): 9mm
Dimension Between Sidebars (L): 16mm
Sidebar Thickness (S): 2.5mm
Sidebar Height (H): 18mm

Although this chain is comparable to DIN 8165 chains, it does not interchange with other precision chain standards. In addition to the chain we also have a full line of M20B40 sprockets and attachments. To check pricing and availability or for additional information please contact us and we will be happy to assist you.
