SDC #55 Chain With HB4 Attachment Every 24.45" - 16.3FT

Heavy Duty Bale Elevator Chain

Product Code: SDC-BE-55-HB4-8-120

Currently Unavailable

Description

Technical Specs

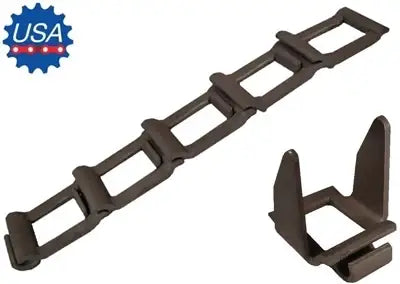

Our bale elevator chain is manufactured using a high-strength #55 steel detachable chain that has an HB4 attachment every 24.5" (15th link) and is 16.3ft in length. What separates this chain from others is that it is manufactured using a special cold rolled steel that has been heat-treated for maximum strength and durability. The HB4 attachments on this chain is designed with two dull points which catches the hay bale and proceeds to take it up the elevator. Besides the chain we can also supply 55 series sprockets, the drive roller chains, motors, pulleys, and belts. For additional information or to get pricing and availability contact us and we will be happy to assist you.

Dimensions:

Pitch (P): 1.630"
Dimension (M): 1.281"
Dimension (E): 0.813"
Dimension (D): 0.796"
Dimension (T): 0.125"
Average Ultimate Strength: 2,800 LBS
Chain Assembly Weight: 10.8 LBS
Overall Length: 16.3FT
Amount Of Attachments: 8
Attachment Spacing: 24.5" (Every 15th)
Tolerance on Thickness: +/- 0.006"

Dimension (E): 0.875"
Dimension (F): 1.688"
Dimension (H): 2.188"
Dimension (T): 0.125"

About Us

Features

- Extremely High-Strength and Durable
- Supplied as Pre-Made Attachment Strand
- Easy to Maintain and Replace
