HP-270508P Chain | Hollow Pin Chain

HP-270508P Hollow Pin Chain

Product Code: HP-270508P-CHAIN

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

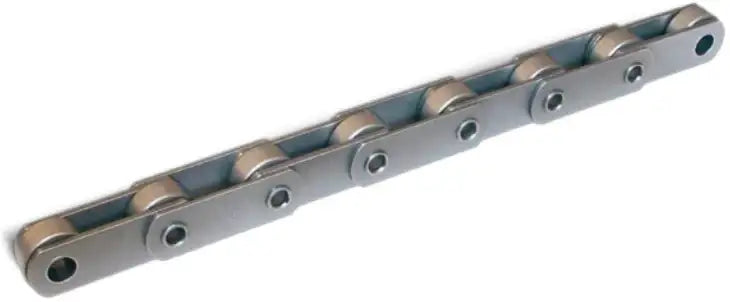

HP-270508P Chain is also known as HP27/0508/P chain and is a hollow pin conveyor chain. Primarily HP270508P chain is found in wastewater applications, food processing, chemical plants, and even refineries. The chain has become so popular due to the hollow pin design which allows for an able area for easily affixing attachments to the outer plates through the hollow pins. The attachment can be fastened tightly against the hollow pin rivet or left in a free manner to pivot.

HP-270508P Chain is typically made of stainless steel, zinc plated components, acetal copolymer rollers, or a combination of the three options based upon the application needs. The chains breaking load ratings are based upon the zinc plated version, technical data on other vacations can be supplied at the time of quoting. We also supply HP-270508P Chain sprockets and can custom manufactured desired attachments for the chain upon request.

HP-270508P Chain Dimensions

Chain Size: HP27/0508/P
Pitch (P): 50.8mm
Breaking Load: 27 kN
Breaking Load (with heat-treated link plates): 54 kN
Average Weight: 3.50 kG/m
Roller (D2): 31.75mm
Roller (D4): 40mm
Roller (flange thickness): 5mm
Bushing Outside Diameter (D5): 17mm
Overall Width (F1): 37mm
Distance Between Sidebars (L): 15mm
Sidebar Thickness (S1): 4mm
Sidebar Thickness (S2): 4mm
Sidebar Height (H): 25mm
Pin Diameter (D6): 14mm
Hollow Pin ID (D7): 10.2mm
