HKK #200 Cottered Roller Chain - 10ft Box
HKK #200 Cottered Roller Chain



Availability: Normally In Stock
Product Code: HKK-200-COTTERED-ROLLER-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

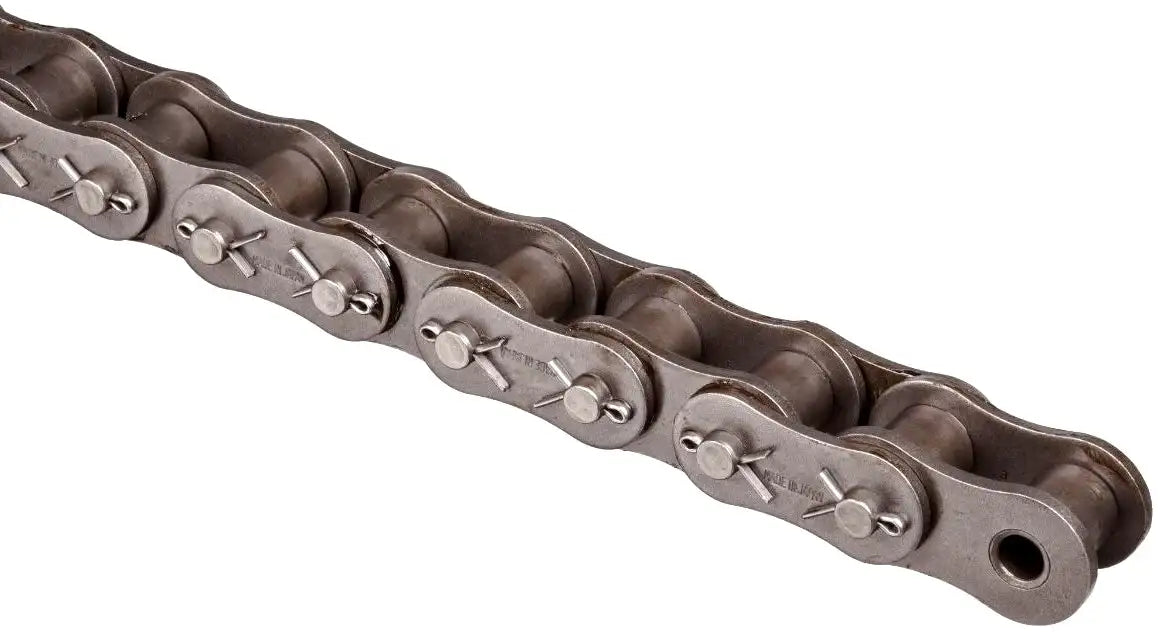

HKK #200 Cottered Roller Chain

HKK #200 cottered roller chain offers high strength, durability, and a long working life. HKK #200 cottered roller chain is manufactured out of high quality carbon steel that is suitable in a broad range of applications. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. HKK Chain has set the bar for quality roller chains with offering maximum operating advantages at minimum cost. HKK Chain has solid bushings, solid rollers, and is manufactured with components that have been shot peened, heat treated, and hardened making the roller chain extremely durable, high strength, and have a long working life. Additionally for added strength HKK roller chain has wide side plates and has been totally lubricated for a prolonged working life. HKK Chain drive efficiency rating of over 98% with no power loss through friction or slipping throughout the entire working life of the chain. For additional information or pricing and availability please contact us.

Dimensions:

  • Chain Size: #200 Roller Chain
  • Tensile Strength: 102,000lbs
  • Working Load: 20,870lbs
  • Pitch (P): 2.500"
  • Roller Width (W): 1.500"
  • Roller Diameter (D): 1.562"
  • Plate Height (H): 2.374"
  • Plate Thickness (T): 0.312"
  • Pin Diameter (E): 0.781"
  • Overall Width (F): 3.418"
  • Weight: 11.53 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • Premium Quality Roller Chain
    • Solid Bushings & Solid Rollers
    • Extremely High Strength & Durable
    • Over 98% Drive Efficiency Rating
    • Wide Contour Link Plates
    • Superior Heat-Treated Pins
    • Total Lubrication Of All Components
    • Fully Heat-Treated
    • Shot Peened For Increased Fatigue
    • Made With High Grade Alloy Steel
    • Fully Meets All ANSI B29.1 Standards
