H78 K2 Attachment
H78 K2 Attachment
H78 K2 Attachment

Note: Contact Us For Large Quantity Request


Availability: Normally In-Stock
Product Code: H78-K2-ATTACHMENT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

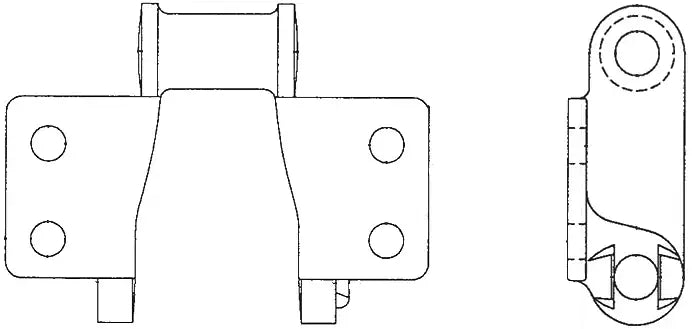

This H78 K2 attachment is a high quality precision attachment that is a common stock item, and can be assembled onto H78 chain in any configuration needed or sold as an individual H78 K-2 attachment link. For more information or to get a quote on H78 chain with K2 attachments or attachment links please contact us and we will be happy to assist you.

Dimensions:

  • Attachment Size: H78 K2
  • Pitch: 2.609"
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.41"
  • Dimension (J): 0.81"
  • Dimension (K): 1.08"
  • Dimension (M): 4.00"
  • Dimension (M1): 1.12"
  • Dimension (R): 2.12"
  • Dimension (T): 0.25"
  • Dimension (W): 5.00"
  • Weight: 6.0 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • Premium Quality Attachment
    • Extremely Durable
    • Can Be Assembled In Any Configuration
    • Usable In Abrasive Environments
    • Typically In-Stock
