F-22060 Chain | Forged Link Chain

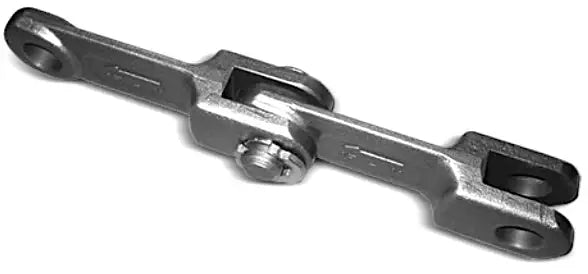

F22060 Forged Link Chain
F22060 Forged Link Chain

Alternative Views:


Product Code: JKF-22060-CHAIN
Get a Quote
Call to Order 407-347-3519

Description

F-22060 Chain has proven to be one of the most reliable conveying mediums offering a combination of versatility, strength, and abrasion resistance. Typically F22060 chain is found in wastewater applications, food processing, chemical plants, foundries, and even refineries. The high-strength and extreme durability of F-22060 chain make it an ever-growing option for conveying applications. What separates out forge link chain is various heat-treat processes and the material options available.
  • TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
  • CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
  • CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered
We also supply F-22060 chain sprockets, pin styles, and attachment types. For more information or to get a quote please contact us and we will be happy to assist you.

F22060 Chain Dimensions

  • Chain Size: F-22060
  • Pitch (P): 220mm
  • Dimension (T): 71mm
  • Dimension (C): 75mm
  • Dimension (S): 31mm
  • Dimension (F): 33mm
  • Dimension (R): 21mm
  • Bolt-Hole Diameter (D): 35mm
  • TN Option Breaking Load: 735 kN
  • CN Option Breaking Load: 790 kN
  • CD Option Breaking Load: 1,300 kN
  • Weight: 22.90 kG/ M

F-22060 Pin Options


Type 22 - Standard Double Circlip

Type HD/22 - Hardened Pin With Standard Circlip

Type HD/45/28RP - Headed Pin With Collar and Roll Pin Retention

Type HD/45/28S - Headed Pin With Collar and S Cotter Retention
Type SN/28S - Antirotation Snub Pin Washer and S Cotter Retention
Type HD/28S - Headed Pin With Washer and S Cotter Retention
F-22060 Chain Attachments

B-Type Flight Attachment for Horizontal Conveying:

T-Type Attachment for Horizontal and Slightly Inclined Conveying:

U Type Attachment for Horizontal and Incline Conveying (with or without blanking plate):

C Type Attachments for Horizontal, Inclined, and Vertical Conveying (with or without blanking plate):

OO Type Attachments for Horizontal and Inclined Conveying (with or without blanking plate):

Note: Please provide required dimensions when requesting attachments.
Additional Wastewater Treatment Products:
  • Sprockets
  • Bearings
  • Gear Boxes/ Reducers
  • Motors/ Drives
  • Pumps & Seals
  • Flights, Flight Boards, & Flight Monitoring
  • Sensors
  • Helical Scum Skimmers
  • Wear Strips, Wear Shoes, Filler Blocks
  • Static Sleeves & Wall Bearings
