CGSM5-25 Reducer
Larger Photo

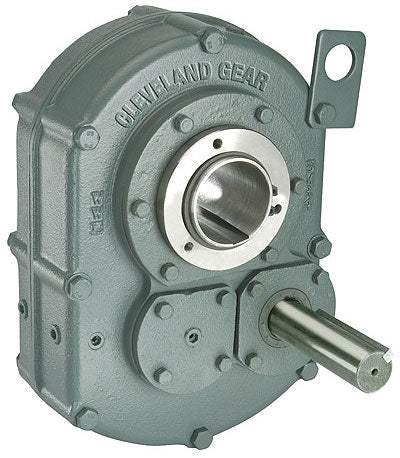

Cleveland Gear CGSM5-25 Reducer

0 Reviews

Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years

Availability: Typically In-Stock
Product Code: CGSM5-25-REDUCER

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

Cleveland Gear CGSM5-25 Reducer is a high strength and high quality 25:1 ratio shaft mount reducer. The Cleveland Gear brand reducers are suitable fro AGMA Class I, II, or III applications and use carburized, case hardened, and ground helical gearing. This CGSM5-25 Reducer also features alloy steel shafts with hardened and ground gear sets and bearing/ seal journals to maximize durability and extend operation life. The double lip spring loaded shaft seals keep oil in while keeping contents out, while the oversized bearings ensure a reliable working life in harsh applications. Then a high strength precision machined cast iron keeps everything protected and provides maximum support for shafts.

CGSM5-25 Reducer Dimensions

Part #: CGSM5-25
Ratio: 25:1
Box Size: 5
Dimension (L): 13.13"
Dimension (M): 18.31"
Dimension (N): 10.52"
Dimension (F): 1.9375"
Key: 0.50" X 0.25" X 4.50"
Maximum Dimension (B): 2-15/16"
Dimension (C): 1.81"
Dimension (E): 5.63"
Dimension (G): 3.44"
Dimension (W): 1.75"
Dimension (U): 1.44"
Dimension (X): 5.05"
Dimension (V): 4.45"
Dimension (Q): 5.74"
Dimension (Y): 1.91"
Dimension (H): 6.31"
Dimension (A1): 3.04"
Dimension (A2): 6.43"
Dimension (A3): 5.67"
Dimension (h): 6.56"
Minimum Dimension (R): 29.19"
Maximum Dimension (R): 35.19"
Dimension (P): 0.50"
Dimension (T): 4.00"
Gear Box Weight: 204 LBS

USA Roller Chain and Sprockets is a direct distributor for Cleveland Gear and has a highly knowledgeable sales team that is ready to assist you! We also have a full line of shaft mount reducer accessories and offer a wide range of industrial power transmission products. For additional information or to get a quote on a CGSM5-25 Reducer please contact us and we will be happy to assist you.
