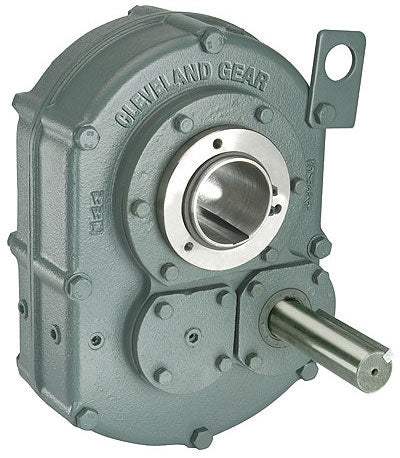

Cleveland Gear CGSM2-25 Reducer

CGSM2-25 Reducer

Alternative Views:

Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years

Availability: Typically In-Stock
Product Code: CGSM2-25-REDUCER

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

Cleveland Gear CGSM2-25 Reducer is a high strength and high quality 25:1 ratio shaft mount reducer. The Cleveland Gear brand reducers are suitable fro AGMA Class I, II, or III applications and use carburized, case hardened, and ground helical gearing. This CGSM2-25 Reducer also features alloy steel shafts with hardened and ground gear sets and bearing/ seal journals to maximize durability and extend operation life. The double lip spring loaded shaft seals keep oil in while keeping contents out, while the oversized bearings ensure a reliable working life in harsh applications. Then a high strength precision machined cast iron keeps everything protected and provides maximum support for shafts.

CGSM2-25 Reducer Dimensions

Part #: CGSM2-25
Ratio: 25:1
Box Size: 2
Dimension (L): 8.38"
Dimension (M): 11.41"
Dimension (N): 7.32"
Dimension (F): 1.125"
Key: 0.25" X 0.125" X 0.250"
Maximum Dimension (B): 1-15/16"
Dimension (C): 1.25"
Dimension (E): 4.06"
Dimension (G): 2.22"
Dimension (W): 1.06"
Dimension (U): 1.25"
Dimension (X): 3.68"
Dimension (V): 2.89"
Dimension (Q): 3.59"
Dimension (Y): 1.40"
Dimension (H): 4.56"
Dimension (A1): 2.14"
Dimension (A2): 4.32"
Dimension (A3): 3.75"
Dimension (h): 4.09"
Minimum Dimension (R): 26.94"
Maximum Dimension (R): 32.94"
Dimension (P): 0.44"
Dimension (T): 3.00"
Gear Box Weight: 58 LBS

USA Roller Chain and Sprockets is a direct distributor for Cleveland Gear and has a highly knowledgeable sales team that is ready to assist you! We also have a full line of shaft mount reducer accessories and offer a wide range of industrial power transmission products. For additional information or to get a quote on a CGSM2-25 Reducer please contact us and we will be happy to assist you.
