#140-2 Double Strand Straight Sidebar Roller Chain - 10ft Box

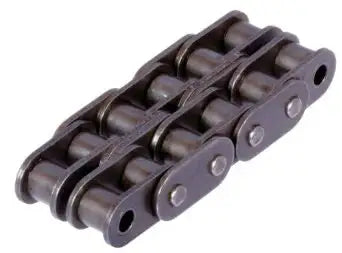

#140-2 Double Strand Straight Sidebar Roller Chain



Availability: Normally In Stock
Product Code: C140-2-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

C140-2 Double Strand Straight Sidebar Roller Chain

This #140-2 straight sidebar double strand roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ANSI #140-2 double strand standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. For pricing and availability please contact us.

Dimensions:

  • Chain Size: #140-2 Straight Sidebar Roller Chain
  • Tensile Strength: 95,780lbs
  • Pitch (P): 1.750"
  • Roller Width (W): 1.000"
  • Roller Diameter (R): 1.000"
  • Plate Height (H): 1.588"
  • Plate Thickness (T): 0.218"
  • Pin Diameter (D): 0.500"
  • Overall Width (F): 4.212"
  • Weight Per Foot: 11.96 lbs/FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
Features
    • Size: #140-2 Double Strand Straight Sidebar Roller Chain
    • Ultimate Strength: 95,780lbs
    • Heat Treated For Increased Fatigue
    • Solid Rollers For Smooth Operation
    • Straight Sidebars Increase Strength, Working Life, and Fatigue
    • Runs On Standard Sprockets
    • High Strength & High Quality
