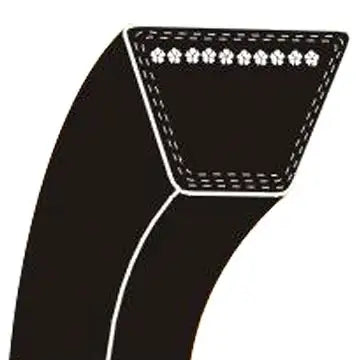

A106 V-Belt | A-section 108" A106 belt (4L1080)
A106 V-Belt A-section A106 belt
A106 V-Belt A-section A106 belt

Note: Premium Quality V-Belt
Note: Quantity Discounts Available


Product Code: A106-V-BELT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

Premium quality A106 v-belts are becoming less common in today's "budget-friendly" world, but our classic A106 v-belts, also known as 4L1080 v-belts are made with some of the highest quality material options and provide a long-term performance operation when compared to some of the other belts out there. These high-strength A106 belts are designed and manufactured in a way that allows perfect tandem in multiple A106 belt drive applications. More specifically, this A106 v-belt is made to ARPM standards, is 108" overall outside length, and has natural oil and heat resistance in harsh environments. Because of the high-performance versus relatively low upfront cost, v-belts are becoming more and more common in new and existing applications.
A106 V-Belt Construction:
  • Cover - High-quality cotton/ polyester blend
  • Compound - Natural rubber/ styrene-butadiene rubber (SBR)
  • Cord - High-strength polyester
Note: We also have Cogged V-Belts which include longer operational life, cooler running, and around a 2% higher efficiency raring than a standard v-belt.

A106 V-Belt Dimensions

  • Belt Size: A106
  • Top Width: 0.66"
  • Thickness: 0.41"
  • Angel: 40 Degrees
  • Outside Length: 108"
  • Weight: 0.55 LBS
  • Interchanges: A-106, 4L1080

A106 V-Belt Pulleys

Our A-section v-belt pulleys are made to ARPM standards, are extreme performance parts, and boast premium features at budget-friendly prices. The charts below show the standard pulley sizes, for additional or custom options, please contact us and we will be happy to assist you.


AK V-Belt Pulleys:
SizeOutside DiameterPitch Diameter (4L/A)Pitch Diameter (3L)TypeDimension (F)Dimension (L)Dimension (P)Dimension (C)Pulley Weight
AK171.75"1.50"1.16"121/32"15/16"7/16"5/32"0.2 LBS
AK202.00"1.80"1.46"121/32"15/16"7/16"5/32"0.3 LBS
AK212.10"1.90"1.56"121/32"15/16"7/16"5/32"0.4 LBS
AK222.20"2.00"1.66"121/32"15/16"7/16"5/32"0.5 LBS
AK232.30"2.10"1.76"121/32"15/16"7/16"5/32"0.5 LBS
AK252.50"2.30"1.96"221/32"15/16"7/16"5/32"0.5 LBS
AK262.60"2.40"2.06"221/32"15/16"7/16"5/32"0.5 LBS
AK272.70"2.50"2.16"221/32"15/16"7/16"5/32"0.6 LBS
AK282.80"2.60"2.26"221/32"15/16"7/16"5/32"0.7 LBS
AK303.05"2.80"2.46"221/32"15/16"7/16"5/32"0.7 LBS
AK323.25"3.00"2.66"221/32"15/16"7/16"5/32"0.7 LBS
AK343.45"3.20"2.86"221/32"15/16"7/16"5/32"0.9 LBS
AK393.75"3.50"3.16"23/4"1-5/32"15/32"1/16"1.4 LBS
AK413.95"3.70"3.36"23/4"1-5/32"15/32"1/16"1.5 LBS
AK444.25"4.00"3.66"33/4"1-5/32"15/32"1/16"1.5 LBS
AK464.45"4.20"3.86"33/4"1-5/32"15/32"1/16"1.5 LBS
AK494.75"4.50"4.16"33/4"1-5/32"15/32"1/16"1.7 LBS
AK514.95"4.70"4.36"33/4"1-5/32"15/32"1/16"1.7 LBS
AK545.25"5.00"4.66"33/4"1-5/32"15/32"1/16"1.8 LBS
AK565.45"5.20"4.86"33/4"1-5/32"15/32"1/16"1.9 LBS
AK595.75"5.50"5.16"33/4"1-5/32"15/32"1/16"2.0 LBS
AK615.95"5.70"5.36"33/4"1-5/32"15/32"1/16"2.1 LBS
AK646.25"6.00"5.66"33/4"1-5/32"15/32"1/16"2.2 LBS
AK666.45"6.20"5.86"33/4"1-5/32"15/32"1/16"2.3 LBS
AK696.75"6.50"6.16"33/4"1-15/32"23/32"--3.5 LBS
AK716.95"6.70"6.36"33/4"1-15/32"23/32"--3.8 LBS
AK747.25"7.00"6.66"33/4"1-15/32"23/32"--3.4 LBS
AK797.75"7.50"7.16"33/4"1-15/32"23/32"--4.0 LBS
AK848.25"8.00"7.66"33/4"1-15/32"23/32"--3.8 LBS
AK898.75"8.50"8.16"33/4"1-15/32"23/32"--4.3 LBS
AK949.25"9.00"8.68"33/4"1-15/32"23/32"--4.5 LBS
AK999.75"9.50"9.16"33/4"1-15/32"23/32"--5.3 LBS
AK10410.25"10.00"9.66"33/4"1-15/32"23/32"--5.1 LBS
AK10910.75"10.50"10.16"33/4"1-15/32"23/32"--5.8 LBS
AK11411.25"11.00"10.66"33/4"1-15/32"23/32"--5.6 LBS
AK12412.25"12.00"11.66"33/4"1-15/32"23/32"--6.5 LBS
AK13413.25"13.00"12.66"33/4"1-15/32"23/32"--7.5 LBS
AK14414.25"14.00"13.66"33/4"1-15/32"23/32"--8.5 LBS
AK15415.25"15.00"14.66"33/4"1-15/32"23/32"--9.8 LBS
AK18418.25"18.00"17.66"33/4"1-15/32"23/32"--12.1 LBS
2AK V-Belt Pulleys:
SizeOutside DiameterPitch Diameter (4L/A)Pitch Diameter (3L)TypeDimension (F)Dimension (L)Dimension (P)Dimension (C)Pulley Weight
2AK202.00"1.80"1.46"11-3/8"1-21/32"15/32"3/16"0.8 LBS
2AK212.15"1.90"1.56"11-3/8"1-21/32"15/32"3/16"0.9 LBS
2AK222.25"2.00"1.66"11-3/8"1-21/32"15/32"3/16"0.9 LBS
2AK232.35"2.10"1.76"11-3/8"1-21/32"15/32"3/16"1.1 LBS
2AK252.55"2.30"1.96"11-3/8"1-21/32"15/32"3/16"1.3 LBS
2AK262.65"2.40"2.06"11-3/8"1-21/32"15/32"3/16"1.4 LBS
2AK272.75"2.50"2.16"11-3/8"1-21/32"15/32"3/16"1.5 LBS
2AK282.85"2.60"2.26"11-3/8"1-21/32"15/32"3/16"1.8 LBS
2AK303.05"2.80"2.46"11-3/8"1-21/32"15/32"3/16"1.8 LBS
2AK323.25"3.00"2.66"11-3/8"1-21/32"15/32"3/16"2.1 LBS
2AK343.45"3.20"2.86"11-3/8"1-21/32"15/32"3/16"2.3 LBS
2AK393.75"3.50"3.16"21-3/8"1-11/32"15/32"1/2"2.6 LBS
2AK413.95"3.70"3.36"21-3/8"1-11/32"15/32"1/2"2.9 LBS
2AK444.25"4.00"3.66"21-3/8"1-11/32"15/32"1/2"3.0 LBS
2AK464.45"4.20"3.86"21-3/8"1-11/32"15/32"1/2"3.1 LBS
2AK494.75"4.50"4.16"21-3/8"1-11/32"15/32"1/2"3.6 LBS
2AK514.95"4.70"4.36"21-3/8"1-11/32"15/32"1/2"3.8 LBS
2AK545.25"5.00"4.66"21-3/8"1-11/32"15/32"1/2"3.3 LBS
2AK565.45"5.20"4.86"21-3/8"1-11/32"15/32"1/2"3.4 LBS
2AK595.75 "5.50"5.16"21-3/8"1-11/32"15/32"1/2"3.5 LBS
2AK615.95"5.70"5.36"31-3/8"1-11/32"15/32"1/2"3.6 LBS
2AK646.25"6.00"5.66"31-3/8"1-19/32"11/32"1/8"4.8 LBS
2AK747.25"7.00"6.66"31-3/8"1-19/32"11/32"1/8"5.6 LBS
2AK848.25"8.00"7.66"31-3/8"1-19/32"11/32"1/8"6.4 LBS
2AK949.25"9.00"8.66"31-3/8"1-19/32"11/32"1/8"7.3 LBS
2AK10410.25"10.00"9.66"31-3/8"1-19/32"11/32"1/8"8.1 LBS
2AK11411.25"11.00"10.66"31-3/8"1-19/32"11/32"1/8"9.0 LBS
2AK12412.25"12.00"11.66"31-3/8"1-19/32"11/32"1/8"9.8 LBS
2AK13413.25"13.00"12.66"31-3/8"1-19/32"11/32"1/8"12.3 LBS
2AK14414.25"14.00"13.66"31-3/8"1-19/32"11/32"1/8"13.9 LBS
2AK15415.25"15.00"14.66"31-3/8"1-19/32"11/32"1/8"14.3 LBS
2AK18418.25"18.00"17.66"31-3/8"1-19/32"11/32"1/8"17.4 LBS
AKH V-Belt Pulleys:
SizeOutside DiameterPitch Diameter (4L/A)Pitch Diameter (3L)TypeDimension (O.L.)Dimension (F)Dimension (L)Dimension (P)Dimension (C)Dimension (X)Dimension (G)Dimension (E)Pulley Weight (LBS)
AK30H3.05"2.80"2.46"11-13/16"3/4"1-1/4"7/8"--1-3/16"7/16"3/16"0.2
AK32H3.25"3.00"2.66"11-13/16"3/4"1-1/4"7/8"--1-3/16"7/16"3/16"0.3
AK34H3.45"3.20"2.86"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.4
AK39H3.75"3.50"3.16"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.5
AK41H3.95"3.70"3.36"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.5
AK44H4.25"4.00"3.66"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.5
AK46H4.45"4.20"3.86"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.5
AK49H4.75"4.50"4.16"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.6
AK51H4.95"4.70"4.36"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.7
AK54H5.25"5.00"4.66"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.7
AK56H5.45"5.20"4.86"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.7
AK59H5.75"5.50"5.16"21-1/2"3/4"1-1/4"9/16"--7/8"7/16"3/16"0.9
AK61H5.95"5.70"5.36"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"1.4
AK64H6.25"6.00"5.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"1.5
AK66H6.45"6.20"5.86"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"1.5
AK69H6.75"6.50"6.16"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"1.5
AK71H6.95"6.70"6.36"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"1.7
AK74H7.25"7.00"6.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"1.7
AK79H7.75"7.50"7.16"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"1.8
AK84H8.25"8.00"7.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"1.9
AK89H8.75"8.50"8.16"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"2.0
AK94H9.25"9.00"8.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"2.1
AK99H9.75"9.50"9.16"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"2.2
AK104H10.25"10.00"9.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"2.3
AK109H10.75"10.50"10.16"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"3.5
AK114H11.25"11.00"10.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"3.8
AK124H12.25"12.00"11.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"3.4
AK134H13.25"13.00"12.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"4.0
AK144H14.25"14.00"13.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"3.8
AK154H15.25"15.00"14.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"4.3
AK184H18.25"18.00"17.66"31-1/2"3/4"1-1/4"9/16"0"7/8"7/16"3/16"4.5
2AKH V-Belt Pulleys:

SizeOutside DiameterPitch Diameter (4L/A)Pitch Diameter (3L)TypeDimension (O.L.)Dimension (F)Dimension (L)Dimension (P)Dimension (C)Dimension (X)Dimension (G)Dimension (E)Pulley Weight (LBS)
2AK30H3.05"2.80"2.46"12-7/16"1-3/8"1-1/4"7/8"15/16"7/8"7/16"3/16"1.4
2AK32H3.25"3.00"2.66"12-7/16"1-3/8"1-1/4"7/8"15/16"7/8"7/16"3/16"1.7
2AK34H3.45"3.20"2.86"12"1-3/8"1-1/4"7/16"1/2"7/8"7/16"3/16"1.8
2AK39H3.75"3.50"3.16"12"1-3/8"1-1/4"7/16"1/2"7/8"7/16"3/16"1.8
2AK41H3.95"3.70"3.36"21-1/2"1-3/8"1-1/4"1/16"--7/8"7/16"3/16"1.9
2AK44H4.25"4.00"3.66"21-1/2"1-3/8"1-1/4"1/16"--7/8"7/16"3/16"2.4
2AK46H4.45"4.20"3.86"21-1/2"1-3/8"1-1/4"1/16"--7/8"7/16"3/16"2.5
2AK49H4.75"4.50"4.16"21-1/2"1-3/8"1-1/4"1/16"--7/8"7/16"3/16"3.1
2AK51H4.95"4.70"4.36"21-1/2"1-3/8"1-1/4"1/16"--7/8"7/16"3/16"3.2
2AK54H5.25"5.00"4.66"21-1/2"1-3/8"1-1/4"1/16"--7/8"7/16"3/16"3.4
2AK56H5.45"5.20"4.86"21-1/2"1-3/8"1-1/4"1/16"--7/8"7/16"3/16"3.6
2AK59H5.75"5.50"5.16"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"3.4
2AK61H5.95"5.70"5.36"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"3.3
2AK64H6.25"6.00"5.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"3.9
2AK74H7.25"7.00"6.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"4.9
2AK84H8.25"8.00"7.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"5.8
2AK94H9.25"9.00"8.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"6.1
2AK104H10.25"10.00"9.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"7.7
2AK114H11.25"11.00"10.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"8.5
2AK124H12.25"12.00"11.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"9.5
2AK134H13.25"13.00"12.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"11.9
2AK144H14.25"14.00"13.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"11.9
2AK154H15.25"15.00"14.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"13.3
2AK184H18.25"18.00"17.66"31-1/2"1-3/8"1-1/4"1/16"0"7/8"7/16"3/16"16.8
About Us
Features
    • Premium V-Belt
    • Conforms To ARPM Standard IP 20
    • Extremely Durable
    • Oil & Heat Resistant
