88K Pintle Chain - 10ft Box

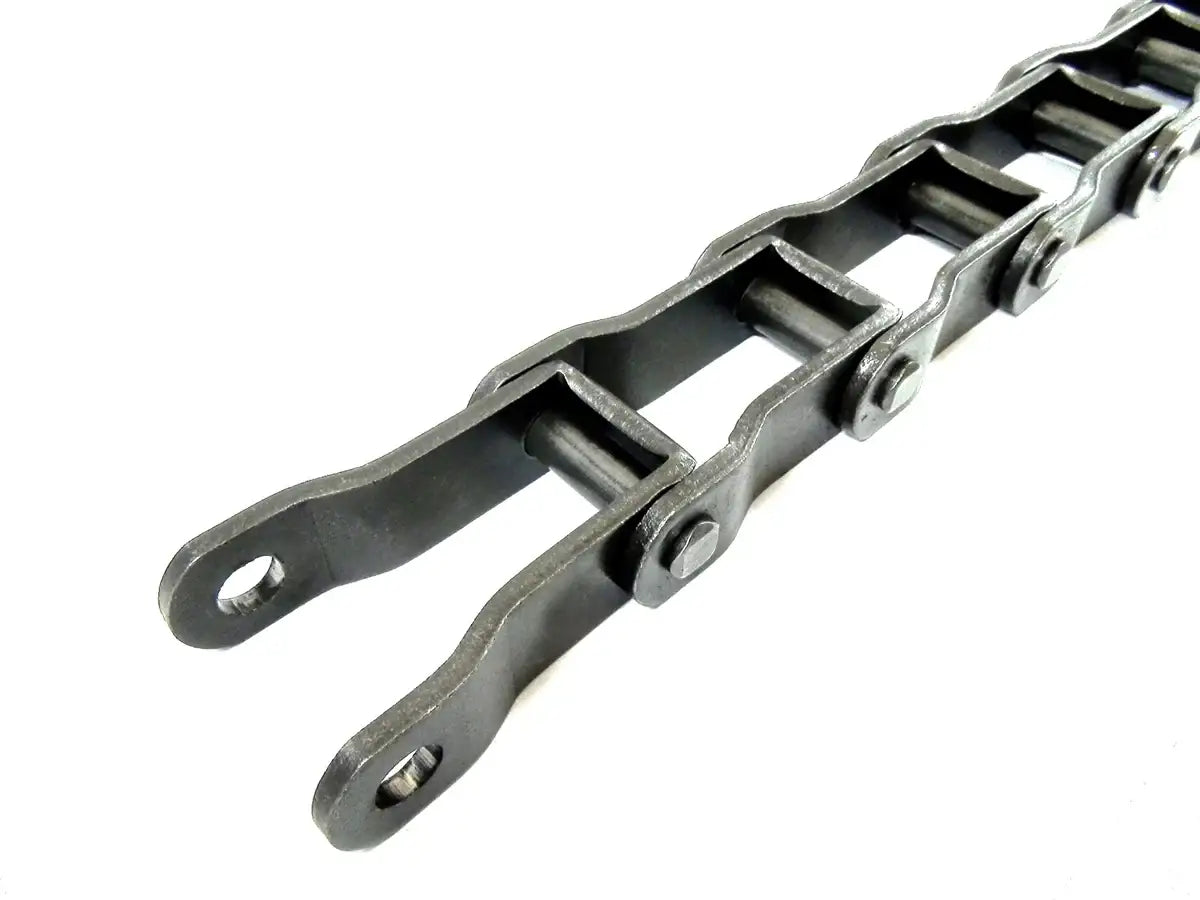

88K Pintle Chain

This 88K pintle chain is extremely durable; fully heat treated, and has a tensile strength of 24,500lbs. Due to the quad staked pins, open barrel design, and overall quality; this chain offers an extended working life and has great overall performance. 88K pintle chain is commonly supplied as 10ft lengths but alternate lengths are available upon request. Additionally, we offer a full line of high quality 88K chain sprockets and attachments; as well as additional connecting links and pins. For additional information or if you have any questions please contact us and we will be happy to assist you!

Dimensions:

• Chain Size: 88K
• Pitch (P): 2.609"
• Ultimate Strength: 29,000lbs
• Side Bar Height (B): 1.063"
• Side Bar Thickness (C): 0.200"
• Rivet Diameter (D): 0.437"
• Overall Width (E): 2.315"
• Maximum Sprocket Thickness (F): 1.000"
• Weight Per 10ft: 23 lbs
