81X Chain With UHMW Tops - Regular

81X UHMW Top Chain Regular

Product Code: 81X-UHMW-TOP-CHAIN-R

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

81X Chain With UHMW Tops is manufactured for applications that require a conveyor chain with non-marking properties such as UHMW. Additionally, it can be used in applications that need a lighter weight chain than a standard rooftop series. There are two common styles of UHMW top 81X chain, this one specifically is the standard style and has a top width of 2-5/8", the narrow version has a top width of 2-1/8" (which we also supply). The base 81X chain that we use is manufactured with high-strength heat treated components and features a solid bushing solid roller (SBR) design for the best possible performance and wear life.

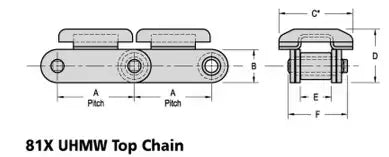

Regular 81X UHMW Top Chain Dimensions

Chain Size: 81X UHMW- Regular
Pitch (P): 2.609"
Sidebar Height (H): 1-1/8"
UHMW Top Width (W): 2-5/8"
Overall Height (M): 1-7/8"
Maximum Sprocket Thickness (T): 7/8"
The overall width of Chain (V): 2-1/8"
Weight Per Foot: 3.5 LBS

We also supply a full line of 81X sprockets. For additional information or to get a quote please contact us and we will be happy to assist you.

About Us

Features

- Premium Quality Chain
- Heavy Duty construction
- Solid Bushings
- Solid Rollers
- Extremely Durable and High-Strength
- Uses Heat-Treated Components
