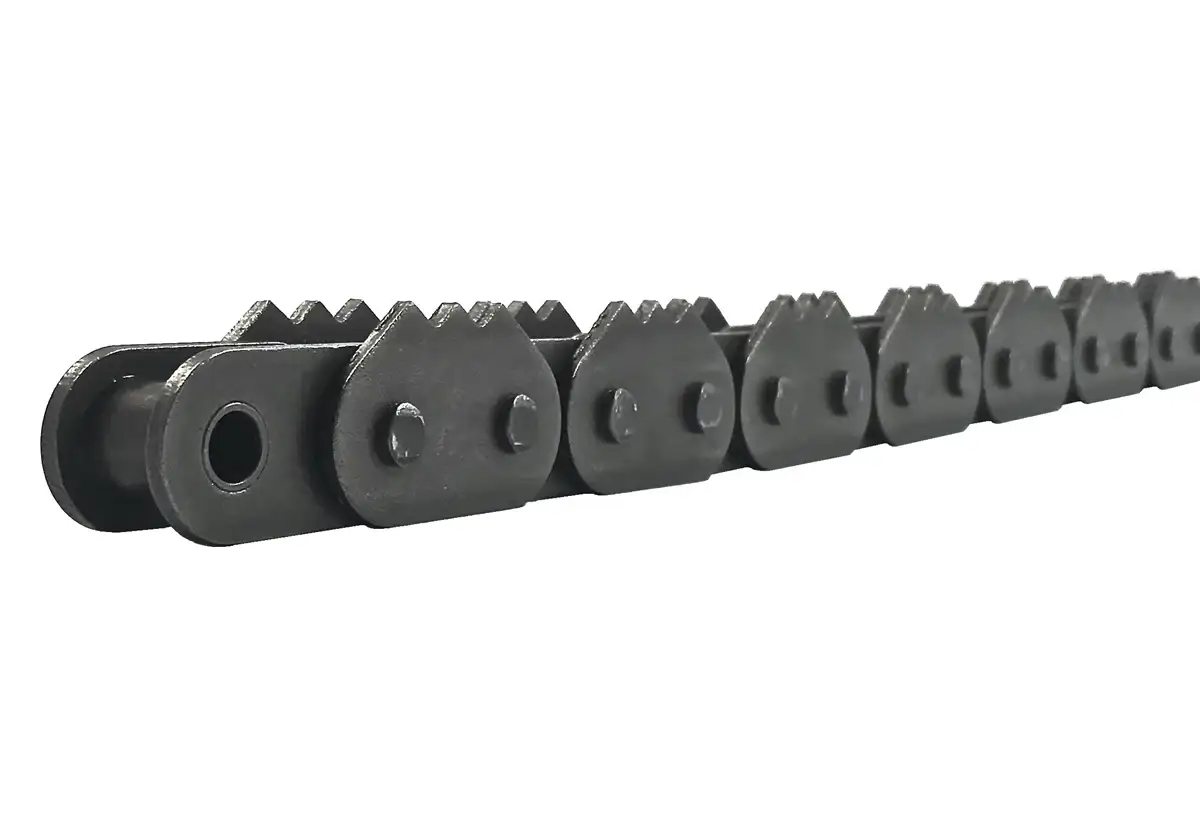

80 Sharp Top Roller Chain With 3-Points Every 2nd Pitch
80-1 Sharp Top Roller Chain
80-1 Sharp Top Roller Chain



Product Code: 80-1-ST-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

What sets our 80 sharp top roller chain with 3-points every 2nd pitch apart from others is our use of high-quality heat treated and shot peened components for optimal fatigue strength and working life, among a wide range of other premium features and specifications. Additionally, the teeth on this chain are high-precision for optimal grip and the least amount of penetration that could result in bruising or waste. At USA Roller Chain we pride ourselves in setting the bar not only in service but the quality level of the products we supply. To get pricing and availability on this chain, please contact us, and we'll be happy to assist you!

Chain Dimensions:

  • Chain Size: 80-1
  • Style: 3-Points Every 2nd Pitch
  • Pitch (P): 1.000"
  • Dimension (B): 1.140"
  • Dimension (C): 0.685"
  • Dimension (D): 0.914"
  • Dimension (E): 0.622"
  • Dimension (F): 1.130"
  • Dimension (G): 0.125"
  • Dimension (H): 0.125"
  • Dimension (I): 1.275"

Additional Options:
  • Chrome Pins (standard in some sizes)
  • Machined Smooth Bottoms to reduce damage to the chain beds
  • Anti-Corrosive Coatings
  • Induction Hardened Teeth
About US
Features
    • High-precision teeth for optimal grip and least amount of penetration
    • Heat treated shot peened pins, bushings, rollers, and side plates for optimal fatigue strength and working life
    • Low draft tooth profile that distributes weight and reduces losses from bruising
    • Triple alloy steel rivet pins and optimal riveting for extended life
    • Ballized bushed plates for uniform hole size
    • Pre-lubed with a premium lubricant designed for sharp top chain
