722SFRF Accumulator Chain - Type B Stainless Steel
722sfrf-accumulator-chain
722SFRF Accumulator Chain



Product Code: 722SFRF-ACU
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

722SFRF accumulator chain is a stainless steel type B accumulator chain. 722SFRF chains are designed for applications where the product must be conveyed, accumulated, accelerated, and separated gently. Our high-quality 722SFRF-ACU accumulator chain provides clients with a performance, precision, and reliable chain product that is second to none. As a genuine tier-one accumulator conveyor chain, we utilize the best quality raw materials, precision-formed components, and proprietary processes to improve wear life, durability, and performance. Stainless steel accumulator chains are used in environments that are high or low in temperature, abrasive, or food grade. In addition, we supply 722SFRF chains with options like polymer rollers, side-flexing, and maintenance-free or snap-in "clip" protectors for preventing materials from falling through the chain. Furthermore, our 722SFRF accumulator roller chain interchanges with other brands, meaning that no guides or sprockets need to be changed when replacing an existing chain. However, we also supply sprockets and accumulator chain guides. For additional information or to get a quote on the 722SFRF accumulator chain, contact our customer support team, and we will be happy to assist you!

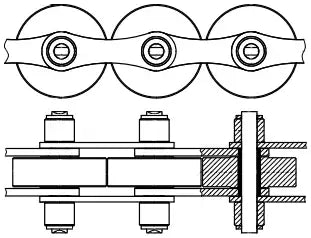

722SFRF Accumulator Chain Dimensions


  • Chain Part #: 722SFRF-ACU
  • Pitch (P): 38.10mm
  • Type: B
  • Inner Width (b1): 11.68mm
  • Inner Link Width (b2): 15.62mm
  • Width Between Outer Plates (b3): 15.80mm
  • Width Over Outer Plates (b4): 20.00mm
  • Support Roller (d1): 12.00mm
  • Pin (d2): 5.72mm
  • Transverse Pitch (e): 31.50mm
  • Plate Height (g): 16.10mm
  • Width Over Pin (I): 48.00mm
  • Support Roller Width (b5): 11.50mm

Accumulator Chain Options

Chain Clips:

These clips are designed to improve the accumulator chain's safety while preventing articles from falling through the chain.
Self-Lubricating/ Maintenance Free:

A self-lubricating accumulator chain will typically utilize a unique pin, bushing, or both that are impregnated with oil. These unique components release minute amounts of oil as the chain is in operation and are ideal in applications where lubrication is difficult or when conveying sensitive materials that can't come into contact with chain oil.
Guide Plates:

These guide plates are available in various spacing options and design options in both carbon and stainless steel material options.
Material Options:

We supply accumulator chains in stainless steel or carbon steel materials; either option is available with plastic rollers.
Accumulator Chain Guide:

Chain guides are utilized for a reduction in chain wear and system friction.
Accumulator Chain Sprockets:

We supply an array of accumulator chain sprockets with different tooth counts, hub configurations, and bore ranges.
About Us
Features
    • Premium Quality Accumulator Chain
    • Precision Components
    • High-Performance
    • Interchanges With Other Brands
    • Highly Versatile
