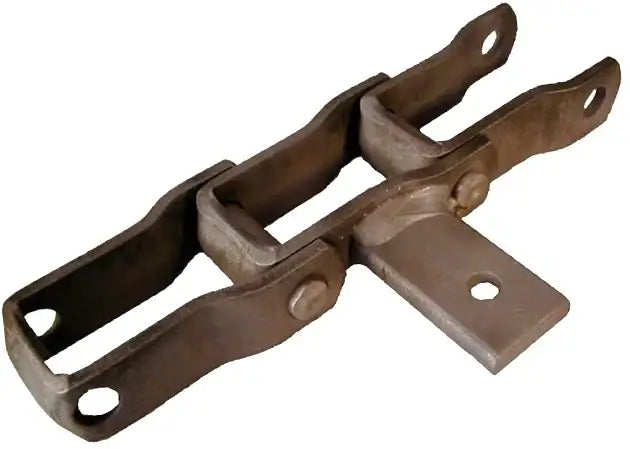

PII 667X with AS Tabs Welded One Side Every 7th Link - 10ft Box

PII 667H pintle chain with AS attachments every 7th link sets its self apart from others by featuring heat-treated premium components, high tensile strength, offers extreme durability, along with having high quality welded AS attachments. 667H pintle chain with AS attachments every 7th is ideally used for material spreading equipment, hay handling equipment, wood processing, and more. This chain also features pins that are quad-staked fully heat-treated to provide the maximum durability and strength. Additionally this chain is oil quenched during the heat-treating process to ensure ideal and proper medal hardening. This 667H pintle chain also features a well engineered open-barreled design which minimizes the contact between the pin and surface, as well as preventing material build up that often results in the chain freezing. On top of that the open barrel design also helps remove build up on sprockets, thus increasing the overall life and performance of the chain and sprockets. We also offer a complete line of 667H pintle chain sprockets and bolt on or weld on slats/ crossbars for creating a complete assembly. For more information, large quantity request, sprockets, or crossbars/ slats please contact us and we will be happy to assist you.

Dimensions:

• Chain Size: 667X
• Pitch (P): 2.250"
• Ultimate Strength: 23,000lbs
• Side Bar Height (B): 0.938"
• Side Bar Thickness (C): 0.170"
• Rivet Diameter (D): 0.437"
• Overall Width (E): 2.156"
• Maximum Sprocket Thickness (F): 0.875"
• Attachment Type: AS
• Dimension (J): 2.031"
• Dimension (K): 2.688"
• Dimension (M): 1.125"
• Dimension (N): 0.328"
• Dimension (T): 0.313"
