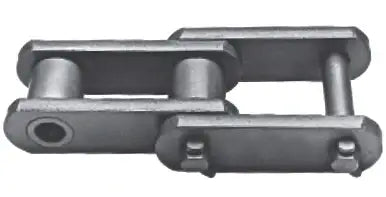

6150PM Chain

This 6150PM chain is a high quality, high strength steel bushed chain that is extremely durable. 6150PM Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality 6150PM chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

• Chain Size: 6150PM
• Pitch: 6.050
• Overall Width (A): 6.41"
• Dimension (B): 3.38"
• Dimension (C): 3.03"
• Inside Width (E): 3.31"
• Bushing Diameter (D): 1.75"
• Bushing Style: Double Flat
• Bushing Material: Alloy Case-Hardened
• Pin Diameter (G): 1.00"
• Pin Material: Alloy Case-Hardened
• Pin Style: Double Flat
• Sidebar Height (H): 2.50"
• Sidebar Thickness (T): 0.50"
• Sidebar Material: Carbon Heat-Treated
• Average Ultimate Strength: 100,000 LBS
• Maximum Working Load: 15,100 LBS
• Weight Per Foot: 16.6 LBS
