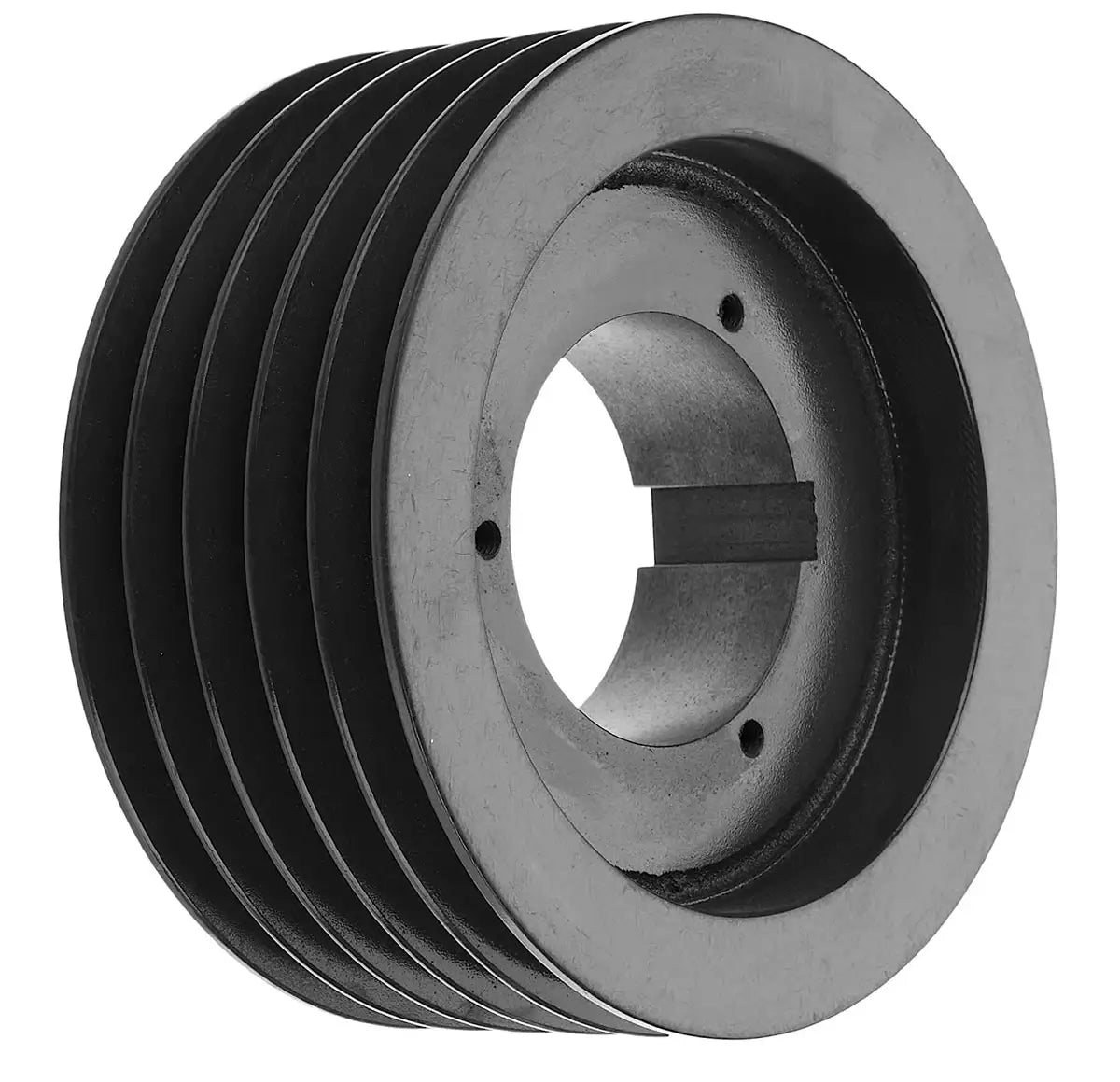

5B90R Sheave five-groove 9.35" OD
5B90R Sheave five-groove
5B90R Sheave five-groove 9.35" OD

Note: Fits Belt Types: A, 4L, AX, B, 5L, BX, AA, BB, Banded
Note: Made From Extreme Duty Cast Iron
Note: Phosphated and Painted For Corrosion Resistance
Note: Balanced For Smooth Operation/ Extended Equipment Life


Product Code: 5B90R-SHEAVE
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

This 5B90R sheave features five grooves, is 9.35" in diameter, and is designed to use an R1 bushing. Split Taper style sheaves offer a wider selection of bore sizes versus a standard "fixed" bore style sheave. Also because they are a two-component part if one component fails the entire part doesn't need to be replaced. All of our sheaves are manufactured out of an extremely durable cast iron, are dynamically balanced at the factory, and are phosphated then painted for corrosion resistance. Additionally, we stock a full line of premium A, 4L, B, 5L, AX, BX, AA, and BB belts, R1 bushings, shafting, key-stock, motors, gearboxes, bearings, and much more!

5B90R Sheave Dimensions


  • Size: 5B90R
  • Bushing Type Needed: R1
  • Pitch Diameter (A/ 4L): 8.6"
  • Pitch Diameter (B/ 5L): 9.0"
  • Outside Diameter: 9.35"
  • Inside Diameter: 7-1/2"
  • Type: 15
  • Overall Width (O.L.): 4-5/32"
  • Dimension (L): 2-7/8"
  • Dimension (P): 1/8"
  • Dimension (C): 1"
  • Dimension (H): 5-3/8"
  • Dimension (F): 4"
  • Dimension (G): 7/8"
  • Dimension (X): 2"
  • Dimension (E): 9/32"
  • Sheave Weight: 29.1 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For additional information or to get pricing and availability on a 5B90R sheave, please contact us and we will be happy to assist you.
About Us
Features
    • Premium Quality V-Belt Pulley
    • Manufactured In Accordance With ARPM Standard IP20
    • Corrosion Resistance
    • High-Performance
    • Extremely Durable
