4103 Pintle Chain
4103 Pintle Chain
4103 Pintle Chain

Alternative Views:


Availability: Normally In Stock
Product Code: 4103-PINTLE-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

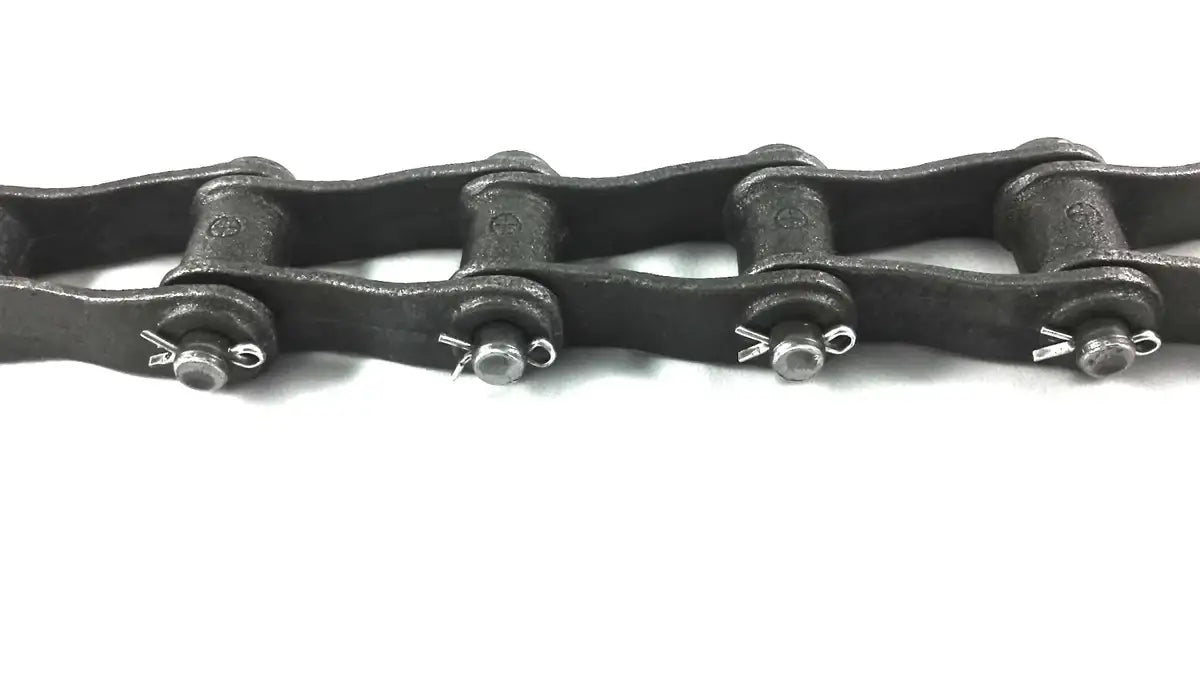

4103 Pintle Chain

4103 pintle chain is a light weight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. This 4103 pintle chain is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. 4103 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and waste water applications. Additionally, we offer a full line of 4103 pintle chain attachments and 4103 sprockets. To get a quote please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: 4103 Pintle Chain
  • Pitch: 3.075"
  • Links Per 10ft: 39
  • Weight Per Foot: 5.7 LBS
  • Average Ultimate Strength: 28,600 LBS
  • Maximum Recommended Working Load: 4,200 LBS
  • Maximum Allowable Sprocket Face (A): 1.12"
  • Overall Width Cottered (C): 3.56"
  • Overall Width Riveted: 3.25"
  • Pin Diameter (E): 0.75"
  • Sidebar Height (F): 1.50"
  • Barrel Diameter (H): 1.25"
  • Head of Pin to Center Line (J): 1.75"
  • End of Pin To Center Line Cottered (K): 1.81"
  • End of Pin To Center Line Riveted (L): 1.50"
  • Length of Bearing (X): 1.88"

Phone: (407) 347-3519
Email: sales@usarollerchain.com
About Us
Features
    • High Quality Pintle Chain
    • Supplied As Cottered Construction
    • Riveted Construction Available
    • Features Carbon Steel Pins
    • Heat-Treated Components
    • Stainless Steel Cotters Available

Accessories
4103 Pin & Cotter
4103 Pin & Cotter
