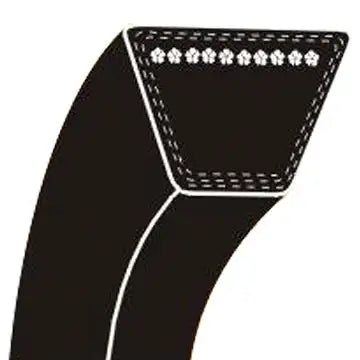

A30 V-Belt - A-Section 32" A30 Belt (4L320 Belt)
A30 V-Belt A-section A30 belt
A30 V-Belt A-section A30 belt

Note: Premium Quality V-Belt
Note: Quantity Discounts Available


Product Code: A30-V-BELT
Get a Quote
Call to Order 407-347-3519

Description Technical Specs


Receive premium quality for a low cost with our 32-inch V-belt collection from USA Roller Chain. The material choices reflect the quality you'll discover, with a combination rubber making up the main compound. Depend on the high-strength polyester cords found within the 4L320 V belt. Each component is shaped with a well-defined 40-degree angle. Rely on this A30 belt to remain in place as you strive for optimal efficiency.

All of our A30 V-belt products meet ARPM standards. It's difficult to find quality parts without an expensive price tag. USA Roller Chain demands perfection from our A30 4L320 belt inventory, but all products are offered at a reasonable price. In fact, every belt can withstand the harshest conditions, such as contact with natural oils and heat. Update your single or tandem application with our V-belts today.


A30 V-Belt Construction:
  • Cover - High-quality cotton/ polyester blend
  • Compound - Natural rubber/ styrene-butadiene rubber (SBR)
  • Cord - High-strength polyester
Note: We also have Cogged V-Belts which include longer operational life, cooler running, and around a 2% higher efficiency raring than a standard v-belt.

A30 V-Belt Dimensions

  • Belt Size: A30
  • Top Width: 0.66"
  • Thickness: 0.41"
  • Angel: 40 Degrees
  • Outside Length: 32"
  • Weight: 0.20 LBS
  • Interchanges: A-30, 4L320

A30 V-Belt Pulleys

Our A-section v-belt pulleys are made to ARPM standards, are extreme performance parts, and boast premium features at budget-friendly prices. The charts below show the standard pulley sizes, for additional or custom options, please contact us and we will be happy to assist you.

AK V-Belt Pulleys:
Size Outside Diameter Pitch Diameter (4L/A) Pitch Diameter (3L) Type Dimension (F) Dimension (L) Dimension (P) Dimension (C) Pulley Weight
AK17 1.75" 1.50" 1.16" 1 21/32" 15/16" 7/16" 5/32" 0.2 LBS
AK20 2.00" 1.80" 1.46" 1 21/32" 15/16" 7/16" 5/32" 0.3 LBS
AK21 2.10" 1.90" 1.56" 1 21/32" 15/16" 7/16" 5/32" 0.4 LBS
AK22 2.20" 2.00" 1.66" 1 21/32" 15/16" 7/16" 5/32" 0.5 LBS
AK23 2.30" 2.10" 1.76" 1 21/32" 15/16" 7/16" 5/32" 0.5 LBS
AK25 2.50" 2.30" 1.96" 2 21/32" 15/16" 7/16" 5/32" 0.5 LBS
AK26 2.60" 2.40" 2.06" 2 21/32" 15/16" 7/16" 5/32" 0.5 LBS
AK27 2.70" 2.50" 2.16" 2 21/32" 15/16" 7/16" 5/32" 0.6 LBS
AK28 2.80" 2.60" 2.26" 2 21/32" 15/16" 7/16" 5/32" 0.7 LBS
AK30 3.05" 2.80" 2.46" 2 21/32" 15/16" 7/16" 5/32" 0.7 LBS
AK32 3.25" 3.00" 2.66" 2 21/32" 15/16" 7/16" 5/32" 0.7 LBS
AK34 3.45" 3.20" 2.86" 2 21/32" 15/16" 7/16" 5/32" 0.9 LBS
AK39 3.75" 3.50" 3.16" 2 3/4" 1-5/32" 15/32" 1/16" 1.4 LBS
AK41 3.95" 3.70" 3.36" 2 3/4" 1-5/32" 15/32" 1/16" 1.5 LBS
AK44 4.25" 4.00" 3.66" 3 3/4" 1-5/32" 15/32" 1/16" 1.5 LBS
AK46 4.45" 4.20" 3.86" 3 3/4" 1-5/32" 15/32" 1/16" 1.5 LBS
AK49 4.75" 4.50" 4.16" 3 3/4" 1-5/32" 15/32" 1/16" 1.7 LBS
AK51 4.95" 4.70" 4.36" 3 3/4" 1-5/32" 15/32" 1/16" 1.7 LBS
AK54 5.25" 5.00" 4.66" 3 3/4" 1-5/32" 15/32" 1/16" 1.8 LBS
AK56 5.45" 5.20" 4.86" 3 3/4" 1-5/32" 15/32" 1/16" 1.9 LBS
AK59 5.75" 5.50" 5.16" 3 3/4" 1-5/32" 15/32" 1/16" 2.0 LBS
AK61 5.95" 5.70" 5.36" 3 3/4" 1-5/32" 15/32" 1/16" 2.1 LBS
AK64 6.25" 6.00" 5.66" 3 3/4" 1-5/32" 15/32" 1/16" 2.2 LBS
AK66 6.45" 6.20" 5.86" 3 3/4" 1-5/32" 15/32" 1/16" 2.3 LBS
AK69 6.75" 6.50" 6.16" 3 3/4" 1-15/32" 23/32" -- 3.5 LBS
AK71 6.95" 6.70" 6.36" 3 3/4" 1-15/32" 23/32" -- 3.8 LBS
AK74 7.25" 7.00" 6.66" 3 3/4" 1-15/32" 23/32" -- 3.4 LBS
AK79 7.75" 7.50" 7.16" 3 3/4" 1-15/32" 23/32" -- 4.0 LBS
AK84 8.25" 8.00" 7.66" 3 3/4" 1-15/32" 23/32" -- 3.8 LBS
AK89 8.75" 8.50" 8.16" 3 3/4" 1-15/32" 23/32" -- 4.3 LBS
AK94 9.25" 9.00" 8.68" 3 3/4" 1-15/32" 23/32" -- 4.5 LBS
AK99 9.75" 9.50" 9.16" 3 3/4" 1-15/32" 23/32" -- 5.3 LBS
AK104 10.25" 10.00" 9.66" 3 3/4" 1-15/32" 23/32" -- 5.1 LBS
AK109 10.75" 10.50" 10.16" 3 3/4" 1-15/32" 23/32" -- 5.8 LBS
AK114 11.25" 11.00" 10.66" 3 3/4" 1-15/32" 23/32" -- 5.6 LBS
AK124 12.25" 12.00" 11.66" 3 3/4" 1-15/32" 23/32" -- 6.5 LBS
AK134 13.25" 13.00" 12.66" 3 3/4" 1-15/32" 23/32" -- 7.5 LBS
AK144 14.25" 14.00" 13.66" 3 3/4" 1-15/32" 23/32" -- 8.5 LBS
AK154 15.25" 15.00" 14.66" 3 3/4" 1-15/32" 23/32" -- 9.8 LBS
AK184 18.25" 18.00" 17.66" 3 3/4" 1-15/32" 23/32" -- 12.1 LBS
2AK V-Belt Pulleys:
Size Outside Diameter Pitch Diameter (4L/A) Pitch Diameter (3L) Type Dimension (F) Dimension (L) Dimension (P) Dimension (C) Pulley Weight
2AK20 2.00" 1.80" 1.46" 1 1-3/8" 1-21/32" 15/32" 3/16" 0.8 LBS
2AK21 2.15" 1.90" 1.56" 1 1-3/8" 1-21/32" 15/32" 3/16" 0.9 LBS
2AK22 2.25" 2.00" 1.66" 1 1-3/8" 1-21/32" 15/32" 3/16" 0.9 LBS
2AK23 2.35" 2.10" 1.76" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.1 LBS
2AK25 2.55" 2.30" 1.96" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.3 LBS
2AK26 2.65" 2.40" 2.06" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.4 LBS
2AK27 2.75" 2.50" 2.16" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.5 LBS
2AK28 2.85" 2.60" 2.26" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.8 LBS
2AK30 3.05" 2.80" 2.46" 1 1-3/8" 1-21/32" 15/32" 3/16" 1.8 LBS
2AK32 3.25" 3.00" 2.66" 1 1-3/8" 1-21/32" 15/32" 3/16" 2.1 LBS
2AK34 3.45" 3.20" 2.86" 1 1-3/8" 1-21/32" 15/32" 3/16" 2.3 LBS
2AK39 3.75" 3.50" 3.16" 2 1-3/8" 1-11/32" 15/32" 1/2" 2.6 LBS
2AK41 3.95" 3.70" 3.36" 2 1-3/8" 1-11/32" 15/32" 1/2" 2.9 LBS
2AK44 4.25" 4.00" 3.66" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.0 LBS
2AK46 4.45" 4.20" 3.86" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.1 LBS
2AK49 4.75" 4.50" 4.16" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.6 LBS
2AK51 4.95" 4.70" 4.36" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.8 LBS
2AK54 5.25" 5.00" 4.66" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.3 LBS
2AK56 5.45" 5.20" 4.86" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.4 LBS
2AK59 5.75 " 5.50" 5.16" 2 1-3/8" 1-11/32" 15/32" 1/2" 3.5 LBS
2AK61 5.95" 5.70" 5.36" 3 1-3/8" 1-11/32" 15/32" 1/2" 3.6 LBS
2AK64 6.25" 6.00" 5.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 4.8 LBS
2AK74 7.25" 7.00" 6.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 5.6 LBS
2AK84 8.25" 8.00" 7.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 6.4 LBS
2AK94 9.25" 9.00" 8.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 7.3 LBS
2AK104 10.25" 10.00" 9.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 8.1 LBS
2AK114 11.25" 11.00" 10.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 9.0 LBS
2AK124 12.25" 12.00" 11.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 9.8 LBS
2AK134 13.25" 13.00" 12.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 12.3 LBS
2AK144 14.25" 14.00" 13.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 13.9 LBS
2AK154 15.25" 15.00" 14.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 14.3 LBS
2AK184 18.25" 18.00" 17.66" 3 1-3/8" 1-19/32" 11/32" 1/8" 17.4 LBS
AKH V-Belt Pulleys:
Size Outside Diameter Pitch Diameter (4L/A) Pitch Diameter (3L) Type Dimension (O.L.) Dimension (F) Dimension (L) Dimension (P) Dimension (C) Dimension (X) Dimension (G) Dimension (E) Pulley Weight (LBS)
AK30H 3.05" 2.80" 2.46" 1 1-13/16" 3/4" 1-1/4" 7/8" -- 1-3/16" 7/16" 3/16" 0.2
AK32H 3.25" 3.00" 2.66" 1 1-13/16" 3/4" 1-1/4" 7/8" -- 1-3/16" 7/16" 3/16" 0.3
AK34H 3.45" 3.20" 2.86" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.4
AK39H 3.75" 3.50" 3.16" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.5
AK41H 3.95" 3.70" 3.36" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.5
AK44H 4.25" 4.00" 3.66" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.5
AK46H 4.45" 4.20" 3.86" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.5
AK49H 4.75" 4.50" 4.16" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.6
AK51H 4.95" 4.70" 4.36" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.7
AK54H 5.25" 5.00" 4.66" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.7
AK56H 5.45" 5.20" 4.86" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.7
AK59H 5.75" 5.50" 5.16" 2 1-1/2" 3/4" 1-1/4" 9/16" -- 7/8" 7/16" 3/16" 0.9
AK61H 5.95" 5.70" 5.36" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.4
AK64H 6.25" 6.00" 5.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.5
AK66H 6.45" 6.20" 5.86" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.5
AK69H 6.75" 6.50" 6.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.5
AK71H 6.95" 6.70" 6.36" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.7
AK74H 7.25" 7.00" 6.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.7
AK79H 7.75" 7.50" 7.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.8
AK84H 8.25" 8.00" 7.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 1.9
AK89H 8.75" 8.50" 8.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 2.0
AK94H 9.25" 9.00" 8.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 2.1
AK99H 9.75" 9.50" 9.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 2.2
AK104H 10.25" 10.00" 9.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 2.3
AK109H 10.75" 10.50" 10.16" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 3.5
AK114H 11.25" 11.00" 10.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 3.8
AK124H 12.25" 12.00" 11.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 3.4
AK134H 13.25" 13.00" 12.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 4.0
AK144H 14.25" 14.00" 13.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 3.8
AK154H 15.25" 15.00" 14.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 4.3
AK184H 18.25" 18.00" 17.66" 3 1-1/2" 3/4" 1-1/4" 9/16" 0" 7/8" 7/16" 3/16" 4.5
2AKH V-Belt Pulleys:

Size Outside Diameter Pitch Diameter (4L/A) Pitch Diameter (3L) Type Dimension (O.L.) Dimension (F) Dimension (L) Dimension (P) Dimension (C) Dimension (X) Dimension (G) Dimension (E) Pulley Weight (LBS)
2AK30H 3.05" 2.80" 2.46" 1 2-7/16" 1-3/8" 1-1/4" 7/8" 15/16" 7/8" 7/16" 3/16" 1.4
2AK32H 3.25" 3.00" 2.66" 1 2-7/16" 1-3/8" 1-1/4" 7/8" 15/16" 7/8" 7/16" 3/16" 1.7
2AK34H 3.45" 3.20" 2.86" 1 2" 1-3/8" 1-1/4" 7/16" 1/2" 7/8" 7/16" 3/16" 1.8
2AK39H 3.75" 3.50" 3.16" 1 2" 1-3/8" 1-1/4" 7/16" 1/2" 7/8" 7/16" 3/16" 1.8
2AK41H 3.95" 3.70" 3.36" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 1.9
2AK44H 4.25" 4.00" 3.66" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 2.4
2AK46H 4.45" 4.20" 3.86" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 2.5
2AK49H 4.75" 4.50" 4.16" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 3.1
2AK51H 4.95" 4.70" 4.36" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 3.2
2AK54H 5.25" 5.00" 4.66" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 3.4
2AK56H 5.45" 5.20" 4.86" 2 1-1/2" 1-3/8" 1-1/4" 1/16" -- 7/8" 7/16" 3/16" 3.6
2AK59H 5.75" 5.50" 5.16" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 3.4
2AK61H 5.95" 5.70" 5.36" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 3.3
2AK64H 6.25" 6.00" 5.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 3.9
2AK74H 7.25" 7.00" 6.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 4.9
2AK84H 8.25" 8.00" 7.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 5.8
2AK94H 9.25" 9.00" 8.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 6.1
2AK104H 10.25" 10.00" 9.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 7.7
2AK114H 11.25" 11.00" 10.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 8.5
2AK124H 12.25" 12.00" 11.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 9.5
2AK134H 13.25" 13.00" 12.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 11.9
2AK144H 14.25" 14.00" 13.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 11.9
2AK154H 15.25" 15.00" 14.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 13.3
2AK184H 18.25" 18.00" 17.66" 3 1-1/2" 1-3/8" 1-1/4" 1/16" 0" 7/8" 7/16" 3/16" 16.8

About Us
Features
    • Premium V-Belt
    • Conforms To ARPM Standard IP 20
    • Extremely Durable
    • Oil & Heat Resistant
