#200 Roller Chain Sprockets

Our premium quality 200 roller chain sprockets utilize a high-grade carbon steel material and follow through with an anti-corrosive black oxide coating and feature hardened teeth (on tooth counts 30 or below). The combination of premium features and precision tolerance manufacturing make these size 200 sprockets a high-quality, reliable, and durable component for any conveyor or drive system. Being manufactured dimensionally in accordance with ANSI B29.1 Standards from the American National Standards Institute means that our sprocket is compatible with any ANSI 200 roller chain and directly replaces any ANSI 200 sprocket with its equivalent size. We also supply custom bore or complete custom manufactured #50 chain sprockets upon request, in a range of material options ranging from stainless steel to aluminum. For additional information or assistance contact our customer support team.


#200 A-Plate Sprockets


Sprocket Size Tooth Count Type Outside Diameter Stock Bore (D) Weight (LBS)
200A10 10 A 9.200 1-1/2'' 5-1/2'' 16.0
200A11 11 A 10.020 1-1/2'' 6'' 20.0
200A12 12 A 10.830 1-1/2'' 6-1/2'' 24.0
200A13 13 A 11.640 1-1/2'' 7'' 30.0
200A14 14 A 12.460 1-1/2'' 7-1/2'' 35.0
200A15 15 A 13.260 1-1/2'' 7-1/2'' 40.0
200A16 16 A 14.070 1-1/2'' 7-1/2'' 46.0
200A17 17 A 14.870 1-1/2'' 7-1/2'' 51.0
200A18 18 A 15.680 1-1/2'' 7-1/2'' 57.0
200A19 19 A 16.480 1-1/2'' 7-1/2'' 65.0
200A20 20 A 17.290 1-1/2'' 7-1/2'' 72.0
200A21 21 A 18.090 1-1/2'' 7-1/2'' 82.0
200A22 22 A 18.890 1-1/2'' 8-1/2'' 88.0
200A23 23 A 19.690 1-1/2'' 8-1/2'' 95.0
200A24 24 A 20.490 1-1/2'' 8-1/2'' 105.0
200A25 25 A 21.290 1-1/2'' 8-1/2'' 113.0
200A26 26 A 22.090 1-1/2'' 8-1/2'' 124.0
200A28 28 A 23.690 1-1/2'' 8-1/2'' 144.0
200A30 30 A 25.290 1-1/2'' 8-1/2'' 167.0
200A32 32 A 26.880 1-1/2'' 8-1/2'' 195.0
200A35 35 A 29.280 1-1/2'' 8-1/2'' 227.0
200A40 40 A 33.270 1-1/2'' 9'' 301.0

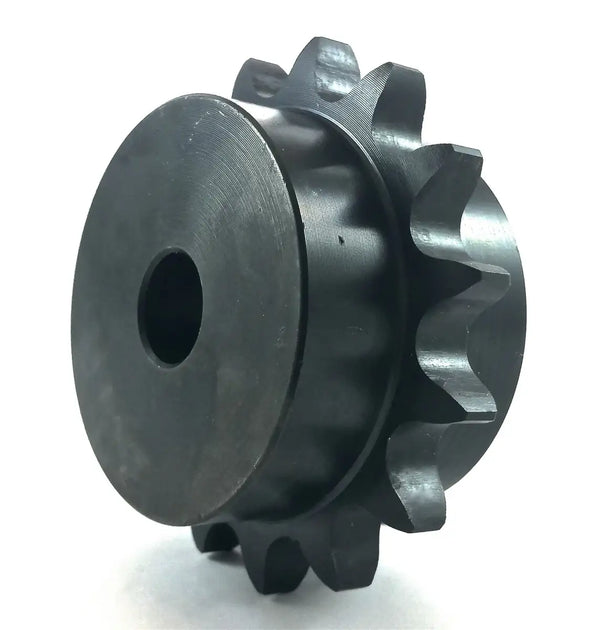

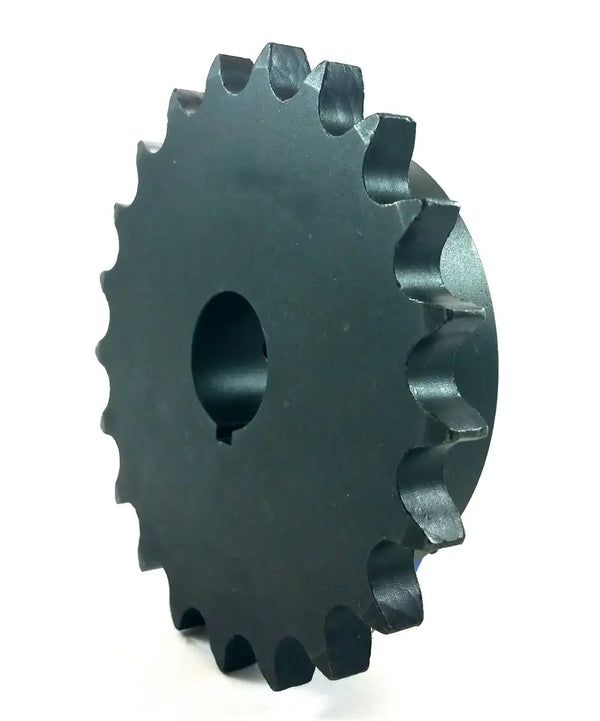

#200 B-Hub Sprockets


Sprocket Size Tooth Count Type Outside Diameter Stock Bore Recommend Max. Bore Hub Diameter Length Thru Bore Weight (LBS)
200B10 10 B 9.200 1-1/2'' 3-3/4'' 5-1/2'' 3'' 26.0
200B11 11 B 10.020 1-1/2'' 4'' 6'' 3'' 33.0
200B12 12 B 10.830 1-1/2'' 4-1/2'' 6-1/2'' 3'' 37.0
200B13 13 B 11.640 1-1/2'' 5-1/4'' 7'' 3'' 46.0
200B14 14 B 12.460 1-1/2'' 5-3/8'' 7-1/2'' 3-1/2'' 59.0
200B15 15 B 13.260 1-1/2'' 5-3/8'' 7-1/2'' 3-1/2'' 64.0
200B16 16 B 14.070 1-1/2'' 5-3/8'' 7-1/2'' 3-1/2'' 72.0
200B17 17 B 14.870 1-1/2'' 5-3/8'' 7-1/2'' 3-1/2'' 76.0
200B18 18 B 15.680 1-1/2'' 5-3/8'' 7-1/2'' 3-1/2'' 84.0
200B19 19 B 16.480 1-1/2'' 5-3/8'' 7-1/2'' 3-1/2'' 91.0
200B20 20 B 17.290 1-1/2'' 5-3/8'' 7-1/2'' 3-1/2'' 98.0
200B21 21 B 18.090 1-1/2'' 5-3/8'' 7-1/2'' 3-1/2'' 106.0
200B22 22 B 18.890 1-1/2'' 5-3/4'' 8-1/2'' 4'' 131.0
200B23 23 B 19.690 1-1/2'' 5-3/4'' 8-1/2'' 4'' 136.0
200B24 24 B 20.490 1-1/2'' 5-3/4'' 8-1/2'' 4'' 142.0
200B25 25 B 21.290 1-1/2'' 5-3/4'' 8-1/2'' 4'' 153.0

#200 C-Hub Sprockets


Sprocket Size Tooth Count Type Outside Diameter Stock Bore Recommend Max. Bore Hub Diameter Length Thru Bore Weight (LBS)
200C26 26 C 22.090 1-1/2'' 5-3/4'' 8-1/2'' 4-1/2'' 178.0
200C28 28 C 23.690 1-1/2'' 5-3/4'' 8-1/2'' 4-1/2'' 195.0
200C30 30 C 25.290 1-1/2'' 5-3/4'' 8-1/2'' 4-1/2'' 212.0
200C32 32 C 26.880 1-1/2'' 5-3/4'' 8-1/2'' 4-1/2'' 22.0
200C35 35 C 29.280 1-1/2'' 5-3/4'' 8-1/2'' 4-1/2'' 254.0
200C40 40 C 33.270 1-1/2'' 6'' 9'' 5'' 320.0

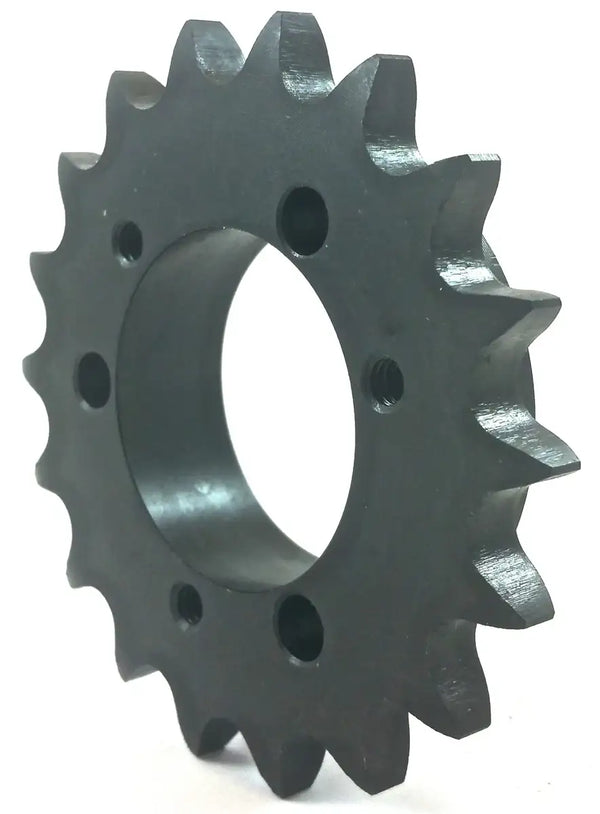

#200 QD Sprockets


Sprocket Size Tooth Count Bushing Outside Diameter Pitch Diameter Type Max. Bore Dimension (L1) Dimension (L2) Dimension (C) Dimension (Y) Dimension (G) Dimension (T) Weight (LBS)
200F12 12 F 10.830 9.660 C 3-15/16'' 3-5/8'' 4'' 6-5/8'' 1'' 1-1/8'' 1.389 24.0
200J13 13 J 111.640 10.447
C 4-7/16'' 4-1/2'' 5'' 7-1/4'' 1-3/16'' 1-13/16'' 1.389 32.0
200J14 14 J 12.460 11.235 C 4-7/16'' 4-1/2'' 5'' 7-1/4'' 1-3/16'' 1-13/16'' 1.389 39.0
200J15 15 J 13.260 12.025 C 4-7/16'' 4-1/2'' 5'' 7-1/4'' 1-3/16'' 1-13/16'' 1.389 44.0
200J16 16 J 14.070 12.815
C 4-7/16'' 4-1/2'' 5'' 7-1/4'' 1-3/16'' 1-13/16'' 1.389 50.0
200M17 17 M 14.870 13.605 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 76.0
200M18 18 M 15.680 14.397 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 82.0
200M19 19 M 16.480 15.910 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 88.0
200M20 20 M 17.290 15.982 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 97.0
200M21 21 M 18.090 16.775 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 103.0
200M22 22 M 18.890 17.567 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 112.0
200M23 23 M 19.690 18.360 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 120.0
200M24 24 M 20.490 19.152 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 131.0
200M25 25 M 21.290 19.947 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 138.0
200M26 26 M 22.090 20.740 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 148.0
200M28 28 M 23.690 22.330 C1 5-1/2''
6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 168.0
200M30 30 M 25.290 23.917 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 190.0
200M32 32 M 26.880 25.505 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 214.0
200M35 35 M 29.280 27.890 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 228.0
200M40 40 M 33.270 31.865 C1 5-1/2'' 6-3/4'' 6-3/4'' 9'' 2-23/32'' 2-5/16'' 1.389 278.0
200N45 45 N 37.250 35.840 C1 5-7/8'' 8-1/8'' 8-1/8'' 10'' 3-13/32'' 3-3/16'' 1.389 348.0
200N54 54 N 44.420 42.995 C1 5-7/8'' 8-1/8'' 8-1/8'' 10'' 3-13/32'' 3-3/16'' 1.389 478.0
200N60 60 N 49.200 47.767 C1 5-7/8'' 8-1/8'' 8-1/8'' 10'' 3-13/32'' 3-3/16'' 1.389 608.0

#200 Taper Bushed Sprockets


Sprocket Size Tooth Count Bushing Outside Diameter Pitch Diameter Type Max. Bore Dimension (OL) Dimension (L) Dimension (C) Dimension (H) Dimension (P) Dimension (T) Weight (LBS)
200R12 12 R2 10.830 9.660 6 3-5/8'' 5-5/32'' 4-7/8'' 2'' 5-3/8'' 1-1/2'' 1.389 35.3
200S13 13 S2 11.640 10.447 6 4-3/16'' 7-1/8'' 6-3/4'' 2-7/8'' 6-3/8'' 2-1/2'' 1.389 52.2
200S14 14 S2 12.460 11.235 6 4-3/16'' 7-1/8'' 6-3/4'' 2-7/8'' 6-3/8'' 2-1/2'' 1.389 57.5
200S15 15 S2 13.260 12.025 6 4-3/16'' 7-1/8'' 6-3/4'' 2-7/8'' 6-3/8'' 2-1/2'' 1.389 61.0
200S16 16 S2 14.070 12.815 6 4-3/16'' 7-1/8'' 6-3/4'' 2-7/8'' 6-3/8'' 2-1/2'' 1.389 71.0
200S17 17 S2 14.870 13.605 6 4-3/16'' 7-1/8'' 6-3/4'' 2-7/8'' 6-3/8'' 2-1/2'' 1.389 79.0
200U18 18 U0 15.680 14.397 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 76.5
200U19 19 U0 16.480 15.190 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 83.7
200U20 20 U0 17.290 15.982 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 91.3
200U21 21 U0 18.090 16.775 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 99.4
200U22 22 U0 18.890 17.567 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 110.0
200U23 23 U0 19.690 18.360 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 117.0
200U24 24 U0 20.490 19.152 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 126.0
200U25 25 U0 21.290 19.947 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 140.0
200U26 26 U0 22.090 20.740 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 150.0
200U28 28 U0 23.690 22.330 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 169.0
200U30 30 U0 25.290 23.917 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 188.0
200U32 32 U0 26.880 25.505 6 5-1/2'' 5-23/32'' 5-1/4'' 1-5/8'' 8-3/8'' 2-17/32'' 1.389 212.0
200U35 35 U1 29.280 27.890 6 5-1/2'' 7-19/32'' 7-1/8'' 2-7/8'' 8-3/8'' 2-7/8'' 1.389 252.0
200U40 40 U1 33.270 31.865 6 5-1/2'' 7-19/32'' 7-1/8'' 2-7/8'' 8-3/8'' 2-7/8'' 1.389 306.0
200U45 45 U1 37.250 35.840 6 5-1/2'' 7-19/32''
7-1/8'' 2-7/8'' 8-3/8'' 2-7/8'' 1.389 290.0
200U54 54 U2 44.420 42.995 6 5'' 10-19/32'' 10-1/8'' 4-1/4'' 8-3/8'' 3-29/32'' 1.389 385.0
200U60 60 U2 49.200 47.767 6 5'' 10-19/32'' 10-1/8'' 4-1/4'' 8-3/8'' 3-29/32'' 1.389 445.0


We stock and supply a full line of high-quality ANSI #200 roller chain sprockets in a very wide range of configurations including; A-Plate, B-Hub, C-Hub, Idler, QD, Taper Bushed, Stainless Steel, Plastic, Single, Double, Double-Single, Triple, and more! We supply sprockets to a wide range of customers including; Re-Sellers, OEMs, large & small end users, and Government Entities. The #200 roller chain sprockets we offer exceed in quality, performance and working life due to the manufacturing standards that have been set for these sprockets. Additionally, we offer a line of 1045 Premium Hardened Steel Black-Oxide Coated #200 Sprockets for the toughest and most demanding applications. All of our #200 sprockets fully meet all ANSI standards to ensure a proper contact between the sprocket and roller chain. We also offer a full line of high quality #200 roller chain at some of the most competitive prices and widest selection in the industry. To get a quote on #200 roller chain sprockets or if you have any questions please contact us and we will be happy to assist you!
