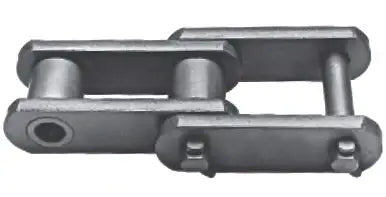

188 Chain

This 188 chain is a high quality, high strength steel bushed chain that is extremely durable. 188 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality 188 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

• Chain Size: 188
• Pitch: 2.609"
• Overall Width (A): 2.69"
• Dimension (B): 1.44"
• Dimension (C): 1.25"
• Inside Width (E): 1.06"
• Bushing Diameter (D): 0.88"
• Bushing Style: Double Flat
• Bushing Material: Carbon Case-Hardened
• Pin Diameter (G): 0.50"
• Pin Material: Carbon Heat-Treated
• Pin Style: Double Flat
• Sidebar Height (H): 1.13"
• Sidebar Thickness (T): 0.25"
• Sidebar Material: Carbon Heat-Treated
• Average Ultimate Strength: 25,000 LBS
• Maximum Working Load: 2,750 LBS
• Weight Per Foot: 3.8 LBS
