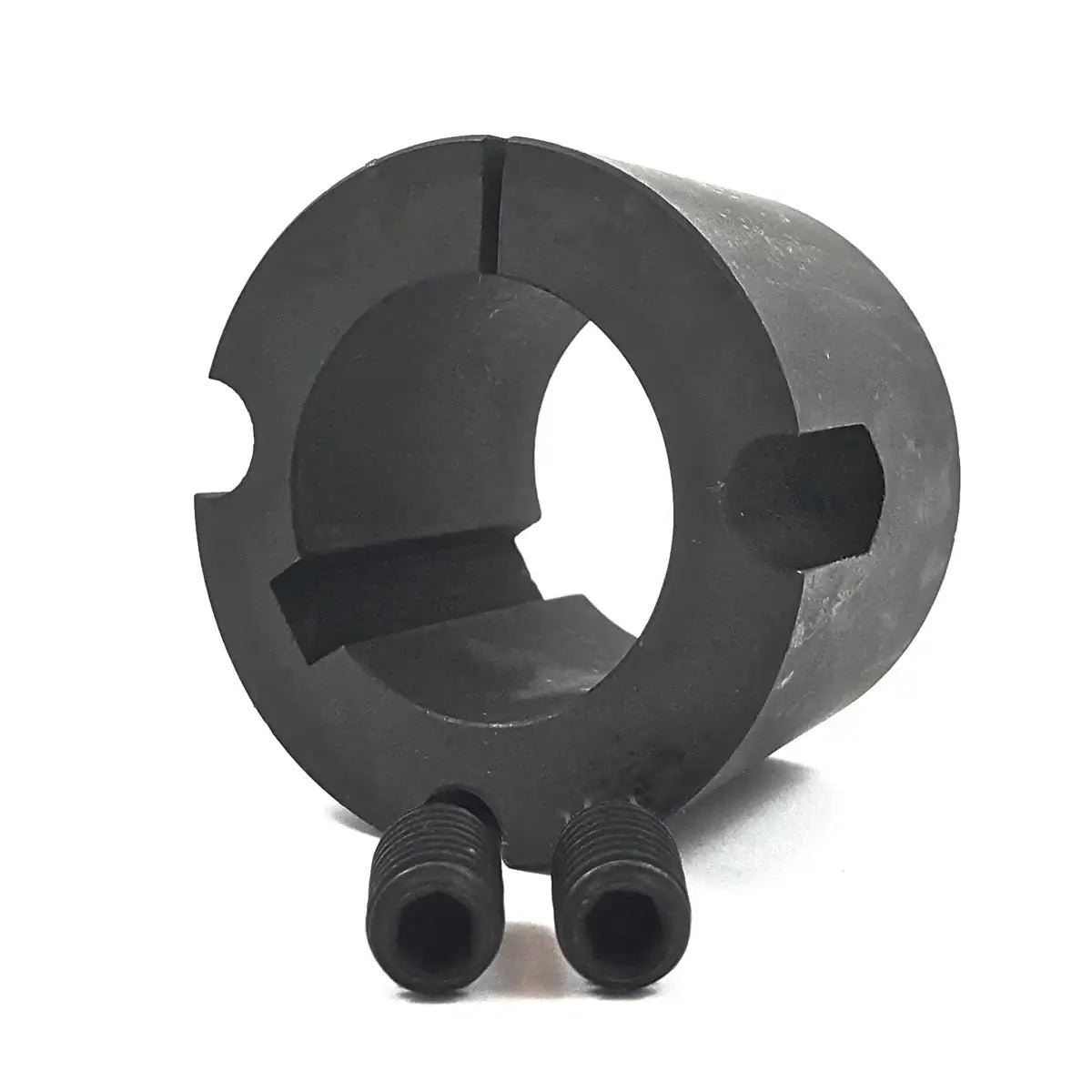

1210 Taper Lock Bushing X 28mm Bore
1210 Taper Lock Bushing
1210 Taper Lock Bushing

Our Price: $12.99


Availability: In-Stock
Product Code: 1210-28MM-TAPER-BUSHING
Qty:

Description Technical Specs

This 1210 taper lock bushing is a high quality, durable, and dependable product that has been precisely manufactured to out-last and out-perform the competition. 1210 taper lock bushings are used in a wide range of applications including; belt pulleys, sprockets, drum pulleys, drive pulleys, tail pulleys, sheaves, and gears, which are items that we also offer! Additionally this bushing features a 28 millimeter bore with a standard keyway, for more information on 1210 taper lock bushings please contact us and we will be happy to assist you.

Dimensions:

  • Bushing Number: 1210
  • Bore: 28mm
  • Dimension (A): 1-7/8"
  • Dimension (B): 1"
  • Dimension (D): 1-3/4"
  • Number Of Set Screws: 2
  • Threads: 3/8"
  • Length: 5/8"
  • Wrench Torque: 175 LBS
  • Weight: 0.5 LBS


Installation
1. clean all oil, dirt, and paint from shaft, bushing bore, outside of bushing and component (sprocket, sheave, etc...) bore.
2. Insert bushing into component. Match the hole pattern, not the thread holes (each hole will be threaded on one side only).
3. Thread set or cap screws into those half threaded holes indicated by the on the below diagram. mount assembly on shaft.
4. Alternately torque set or cap screws* to recommended torque setting in the chart below.
5. Fill all unoccupied holes with grease.


Removal
1. Remove all set or cap screws.
2. Insert set or cap screws in holes indicated by on the digram above.
3. To re-install, complete all five (5) installation instructions.





Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!
About Us
Features
    • High Quality Taper Lock Bushing
    • Features 28mm Bore
    • Has Standard Key-Way
