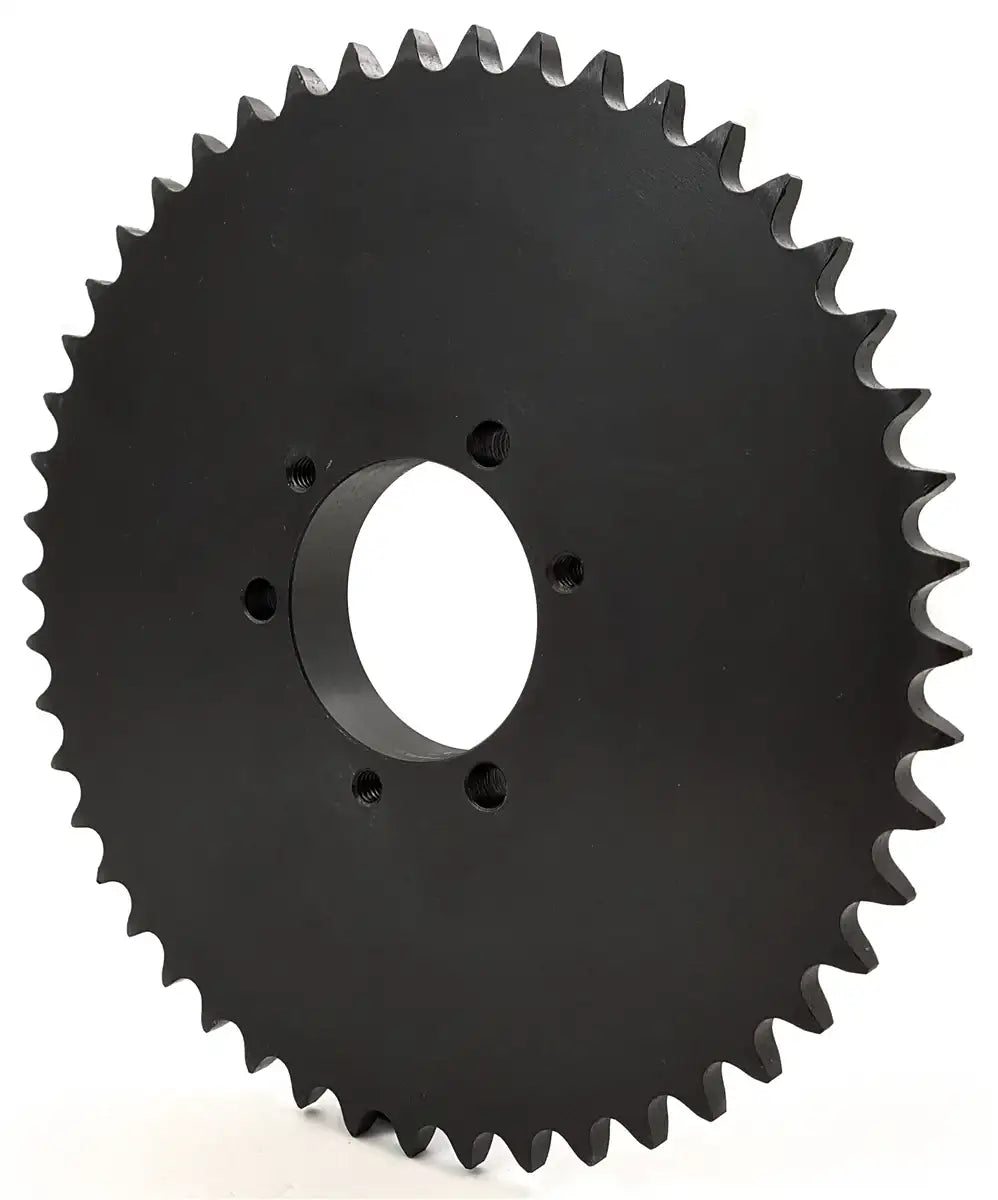

120F48 Sprocket (QD Type)

120F48 Sprocket

Our Price: $936.75

Note: Se Habla Espanol

Availability: In-Stock
Product Code: 120F48-SPROCKET

Qty:

Description

Technical Specs

This 120F48 sprocket is a durable, high quality, and precision 48 tooth sprocket that is manufactured to accept a F bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #120 roller chain and sprocket, thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and prevents early rust build up. 120F48 sprockets are made to accept a F size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom sprocket we do those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

120F48 Sprocket Dimensions

Sprocket Size: 120F48
Tooth Count: 48
Bushing Type: F
Outside Diameter: 23.790"
Pitch Diameter: 22.935"
Sprocket Type: C
Maximum Bore: 3-15/16"
Dimension (L1): 3-5/8"
Dimension (L2): 4"
Dimension (C): 6-5/8"
Dimension (Y): 1"
Dimension (P): 1-11/16"
Dimension (G): 1-37/64"
Dimension (X): 2-1/2"
Dimension (T): 0.924"
Bushing Weight: 11.50 LBS
Sprocket Weight: 92.0 LBS
