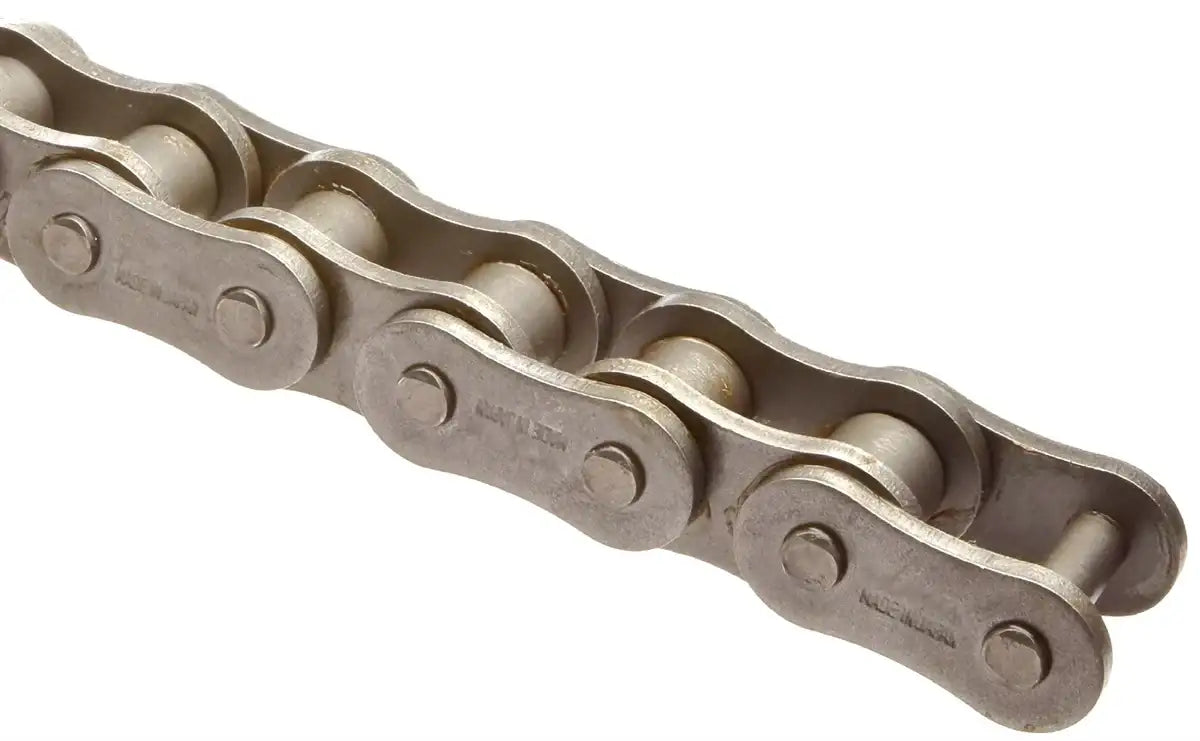

Premium 100HKSR Roller Chain - 10ft Box
100HKSR Roller Chain
100HKSR Roller Chain



Availability: In Stock
Product Code: 100HKSR-ROLLER-CHAIN
Get a Quote
Call to Order 407-347-3519

Description Technical Specs

#100HKSR roller chain is apart of the Super High Strength HKSR series premium heavy roller chains. This roller chain is manufactured using high-quality precision components to increase the working life, fatigue, and strength of the roller chain while still remaining within the dimensions of standard ANSI heavy roller chain. HKSR roller chains feature enlarged and thickened plates, improved machined parts accuracy and assembly, solid bushings and solid rollers. These features further increase the working life, strength, and efficiency over the HK series chains throughout the entire low to high speed application spectrum. Additionally compared to standard roller chains, HKSR series chains are higher in maximum horsepower rating by around 30% in a medium to low speed application. #100HKSR chain also has a much better performance than other chains in applications where there are high shock loads, frequent starting and stopping, and in relatively high-speed applications such as; power shovels, trenchers, trucks, cranes, mixers, conveyors, elevators, stackers, and more. If you're needing a large quantity of #100HKSR roller chain or need any additional information please contact us and we will be happy to assist you!

Dimensions:

  • Chain #: 100HKSR
  • Pitch (P): 1.250"
  • Roller Diameter (D): 0.750"
  • Width Between Plates (W): 0.750"
  • Link Plate Height (H): 1.185"
  • Side Plate Thickness (T): 0.189"
  • Pin Diameter (E): 0.376"
  • Pin Length (L): 1.717"
  • Average Tensile Strength: 32,560 LBS
  • Maximum Recommended Working Load: 7,700 LBS
  • Weight Per Foot: 2.93 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!
About Us
Features
    • Super High Strength
    • Premium Quality Roller Chain
    • Meets & Exceeds ANSI Standards
    • Has Solid Bushings & Solid Rollers
    • Manufactured Using Precession Components
    • 30% Average Increase In Horsepower Rating
    • Enlarged Side-plates
    • Fully Heat-Treated Pins
    • Shot-Peened Components
    • Has Thicker Side-Plates

Accessories
Premium 100HKSR High Strength Connecting Link / Master Link
100HKSR Connecting Link
