Quad-Strand Metric 08B-4 Roller Chain - 10ft Box

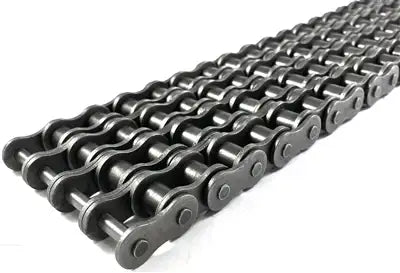

08B-4 Roller Chain
08B-4 Roller Chain

Our Price: $259.99


Product Code: 08B-4-ROLLER-CHAIN
Qty:

Description Technical Specs

08B-4 roller chain is a metric quad-strand chain with a 12.7mm pitch made per ISO and British Standards. Our superior 08B-4 chain is capable of operating within some of the most demanding applications around the world. Specifically, the chain is assembled using precision carbon and alloy steel components that have undergone heat treatment and shot-peening processes. Post assembly, the 08B-4 roller chain is pre-loaded to a specific amount to reduce initial and long-term elongation. We supply 08B-4 roller chains in lengths of 10ft, including one connecting link per box. Additionally, we offer 08B-4 chain sprockets and chain tools. For more information or to get a quote on our tier one 08B-4 roller chain, contact our customer support team, and we will be happy to assist you!

08B-4 Chain Dimensions

08B-4 chain dimensions
  • Part #: 08B-4
  • Pitch (P): 12.70mm
  • Roller Width (R): 7.75mm
  • Roller Diameter (D): 8.51mm
  • Overall Width (W): 58.82mm
  • Connecting Link Overall Width (X): 73.50mm
  • Plate Height (H): 11.56mm
  • Plate Thickness (T): 1.58mm
  • Pin Diameter (L): 4.44mm
  • Minimum Breaking Load: 6,540 KGS
  • Weight: 2.65 kG/ m
Features
    • Premium Quality Quad-Strand Chain
    • Conforms To ISO and British Standards
    • Factory Pre-Loaded
    • Shot-Peened Components
    • Heat-Treated Components
    • Interchanges With Other Brands
    • Supplied In 10ft Box Including One Connecting Link

Accessories
Metric 08B-4 Roller Chain Connecting Link (Master Link) Metric 08B-4 Offset Link
Our Price: $11.99
Our Price: $9.99
08B-4 Connecting Link 08B-4 Offset Link
