C110 K2 Attachment

C110 K2 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: C110-K2-ATTACHMENT
Shipping calculated at checkout.
View full details
Description
Specification
C110 K2 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C110 K2 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C110 chain with K2 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

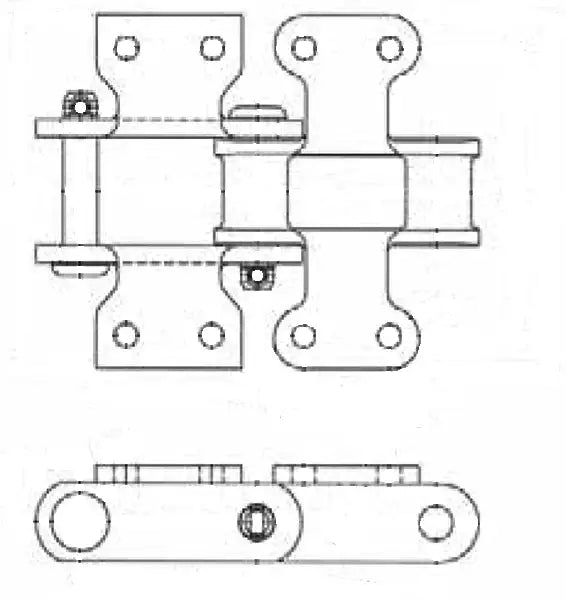

Dimensions:

  • Attachment Number: C110 K2
  • Pitch: 6.000"
  • Bolt Diameter: 0.380"
  • Hole Diameter (D): 0.410"
  • Dimension (J): 1.000"
  • Dimension (K): 3.000"
  • Dimension (M): 5.310"
  • Dimension (M1): 1.750"
  • Dimension (R): 2.880"
  • Dimension (R1): 2.880"
  • Dimension (T): 0.310"
  • Dimension (T1): 0.380"
  • Dimension (W): 6.690"
  • Dimension (W1): 6.750"
  • Weight: 7.9 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Made For C110 Chain
  • High Quality K2 Attachment
  • Can Be Assembled In Any Configuration Needed
  • Extremely Durable
Featured image
  • Attachment Number: C110 K2
  • Pitch: 6.000"
  • Bolt Diameter: 0.380"
  • Hole Diameter (D): 0.410"
  • Dimension (J): 1.000"
  • Dimension (K): 3.000"
  • Dimension (M): 5.310"
  • Dimension (M1): 1.750"
  • Dimension (R): 2.880"
  • Dimension (R1): 2.880"
  • Dimension (T): 0.310"
  • Dimension (T1): 0.380"
  • Dimension (W): 6.690"
  • Dimension (W1): 6.750"
  • Weight: 7.9 LBS/ FT
