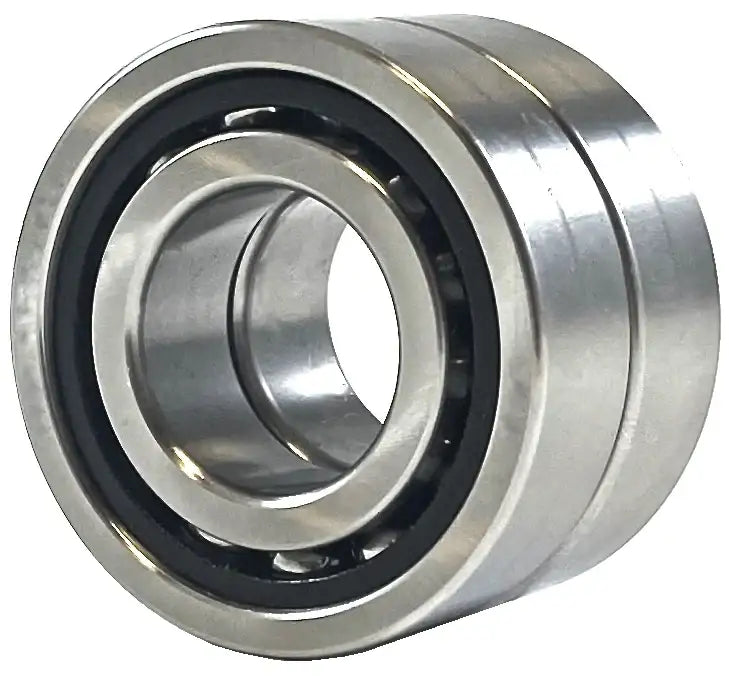

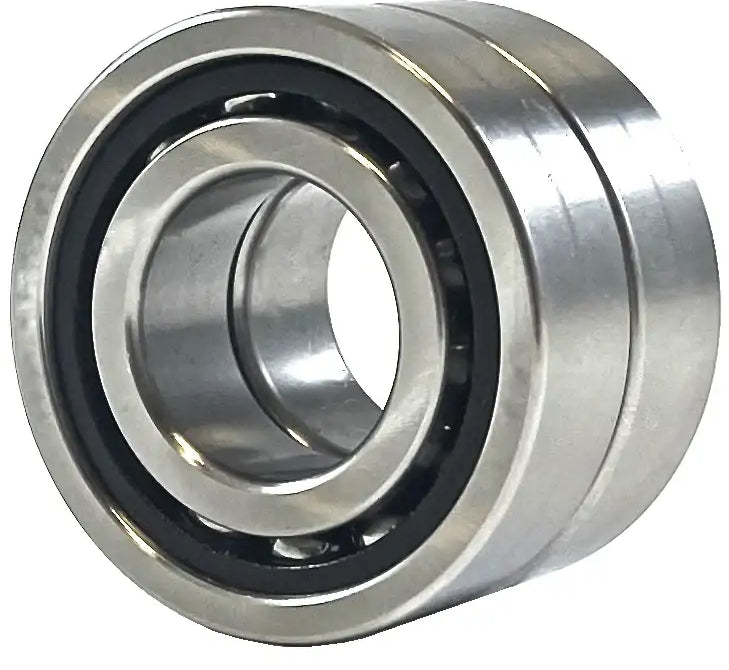

7220 CTBP4DUL spindle bearing pair is manufactured by AXIS to extremely precise ABEC 7 precision tolerances for maximum precision when in operation. This 100x180x34 7220 CTBP4DUL spindle bearing utilizes top-grades of materials as well as proprietary engineering and manufacturing techniques to provide the best spindle bearing on the market. Additional configurations for spindle bearings include simplex, triplex, and quadplex pairs to meet the application requirements. The purpose of a spindle bearing is to enhance and streamline spindle movement to ensure optimal machine speed and accuracy, this AXIS 7220 CTBP4DUL spindle bearing pair executes this purpose with the utmost accuracy and precision. Common applications for spindle bearings include; machine tools, medical equipment, aerospace, textile applications, and more. To get a quote or for additional information contact our customer support team and we will be happy to assist you.

7220 CTBP4DUL Spindle Bearing Pair Dimensions

• Bearing Size: 7220 CTBP4DUL
• Dimension (d): 100mm
• Dimension (D): 180mm
• Dimension (B): 68mm
• Dynamic Load Rating: 52660 LBS
• Static Load Rating: 58358 LBS
• Limiting Speed (Grease): 6000 RPM
• Limiting Speed (OIL): 9600 RPM
• Weight: 7.275 LBS
